C 3500 HD Truck 2WD V8-6.5L DSL Turbo VIN F (2001)

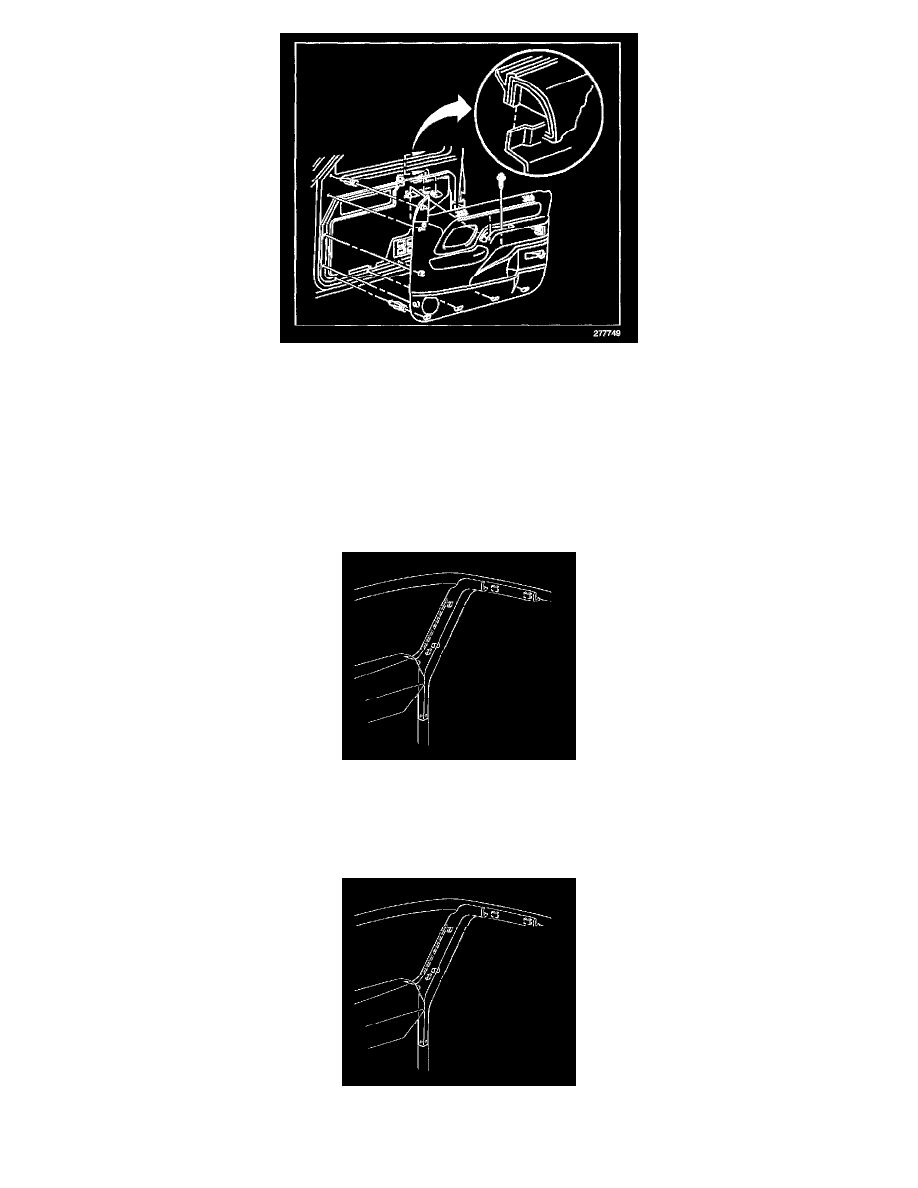

1. Install the retainer to the extension.
2. Install the extension to the door by completing the following steps:
2.1. Insert the extension onto the trim panel.
2.2. Align the retainer into the hole in the door
2.3. Push the extension until the retainer seats.
Windshield Pillar Garnish Molding Replacement
Windshield Pillar Garnish Molding Replacement
Removal Procedure
1. Remove the hinge pillar trim panel.
2. Remove the windshield pillar garnish molding.
Pull the molding straight out in order to release the retainers.
Installation Procedure
1. Install the windshield pillar garnish molding.
2. Insert the molding retainers into the slots and press.
