GMC Workshop Service and Repair Manuals > Canyon 2WD L5-3.5L VIN 6 (2004) > Powertrain Management | Computers and Control Systems | Variable Valve Timing Actuator | Component Information | Diagrams

Variable Valve Timing Actuator|Diagrams|Page 3478 > < Component Locations|Page 3474

Page 1

background image

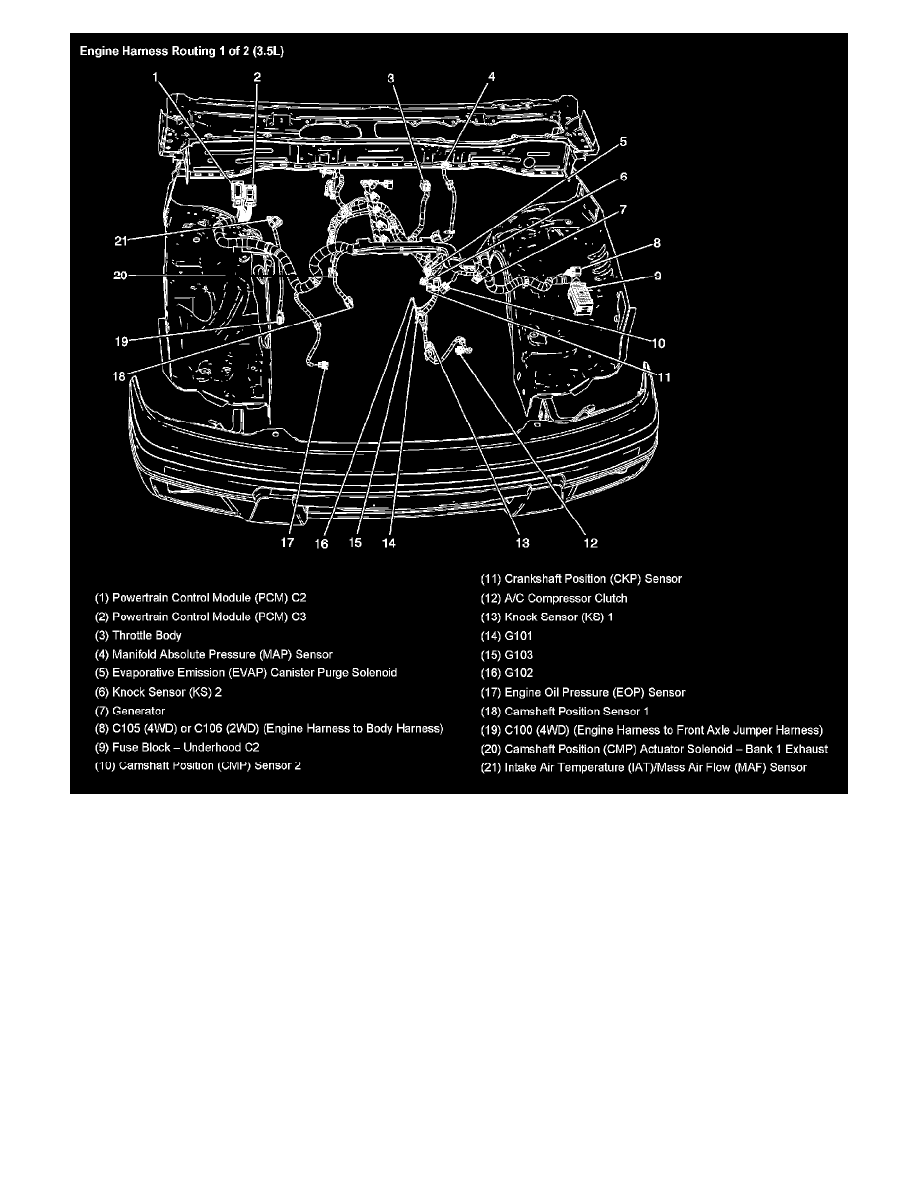

Engine Harness Routing (3.5L) Part 1

Powertrain Management
Computers and Control Systems
Variable Valve Timing Actuator
Component Information
Diagrams
