Canyon 4WD L5-3.7L (2007)
![background image](/gmc/canyon_4wd/l5-3.7l/Page-371003.png)
Tighten the nut to 28 N.m (21 lb ft).
4. Install the evaporator tube retaining clip to the front of the condenser.
5. Install the grille.

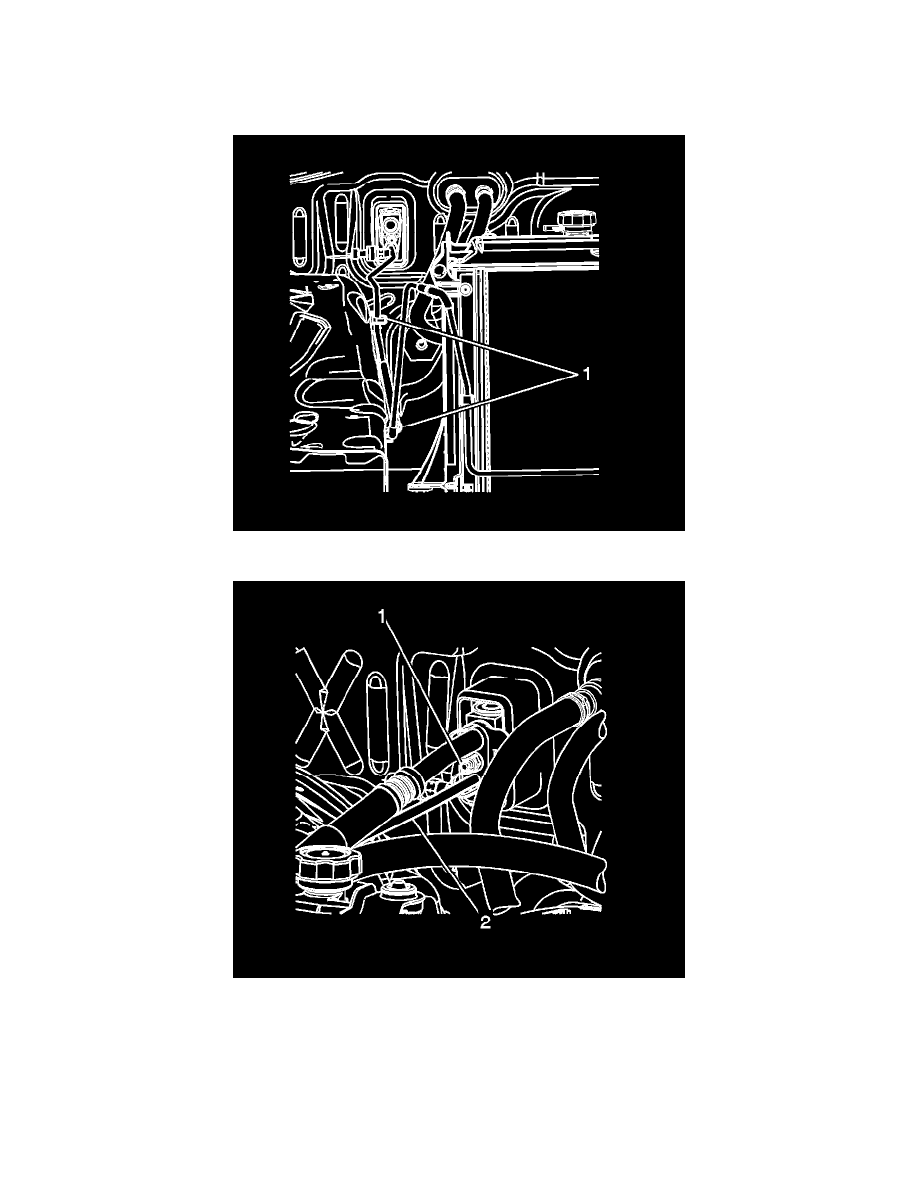

6. Install the evaporator tube to the retaining clips (1) on the fender.
7. Install the evaporator tube (2) to the TXV.
8. Install the evaporator tube nut (1) to the TXV stud.
9. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging.
10. Leak test the fittings of the components using the J39400.
