Canyon 4WD L5-3.7L (2007)
Clutch Disc: Service and Repair
Clutch Assembly Replacement
Tools Required
J 36660-A Torque Angle Meter
Removal Procedure
1. Remove the transmission.

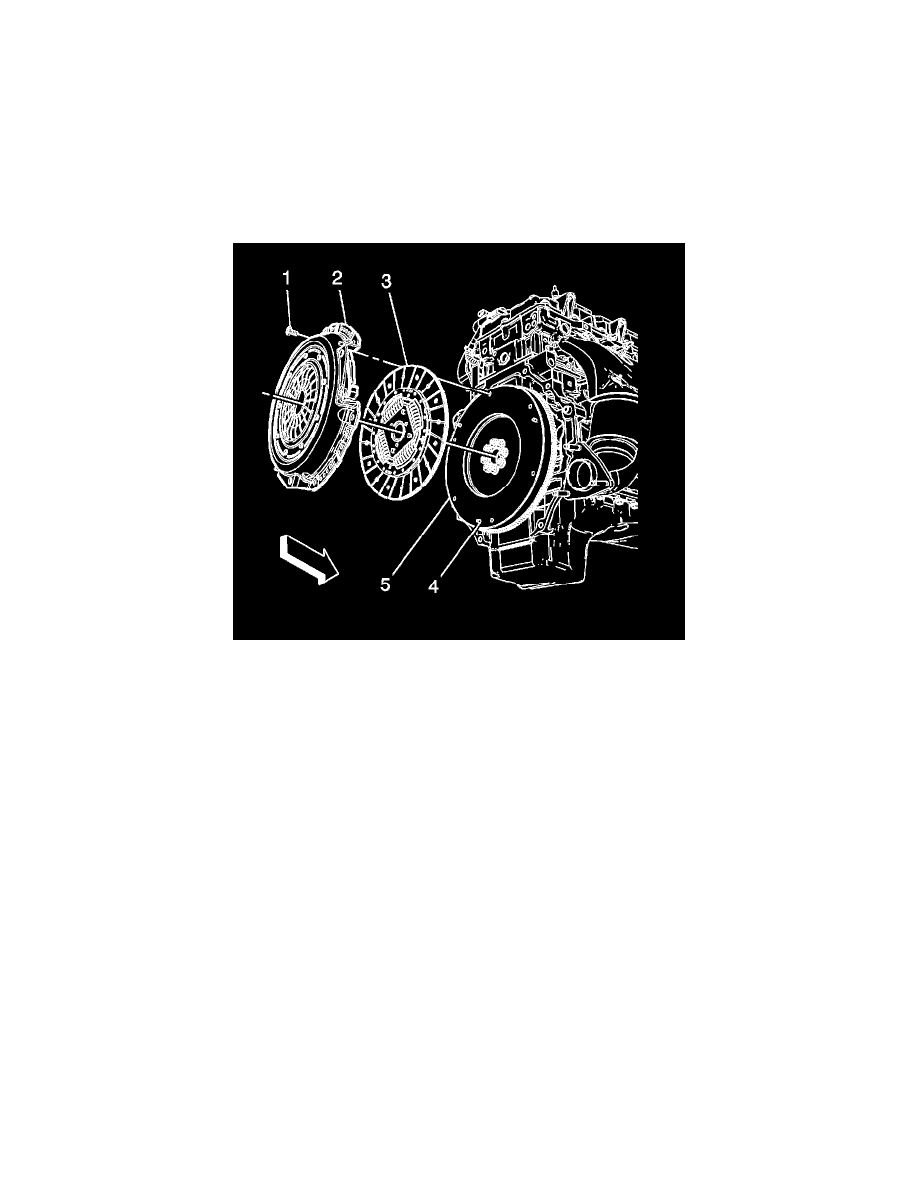

2. Remove the clutch pressure plate bolts (1).
Discard the bolts.
3. Remove the clutch pressure plate (2) and driven disc (3) from the dowel pins (4) on the flywheel (5).
Installation Procedure
