K 2500 3/4 Ton Pickup 4WD V8-350 5.7L VIN L 4-bbl (1983)
11.
Remove pedal bushings and spacer from pedal arm. Check pedal bumper for wear and replace as required.
INSTALLATION
1.
Install new bushings and spacer in pedal arm. Components should be lubricated prior to assembly.
2.
Position clutch pedal upper arm in support bracket and install pivot bolt through support and pedal arms. Bolt must be installed in direction shown
in Figure in order to clear return spring.
3.
Install pivot bolt retaining nut and torque to specifications.
4.
Install pull back spring to support and pedal arm. If previously removed connect pedal push rod to clutch pedal arm.
5.
Position lower pedal arm to upper arm and install upper attaching bolt. Push down on pedal and install lower bolt.
6.
Install clutch neutral start switch.
7.
Install air conditioning duct.
8.
Install steering column covers. Install screws retaining push rod boots to bulk head.
9.

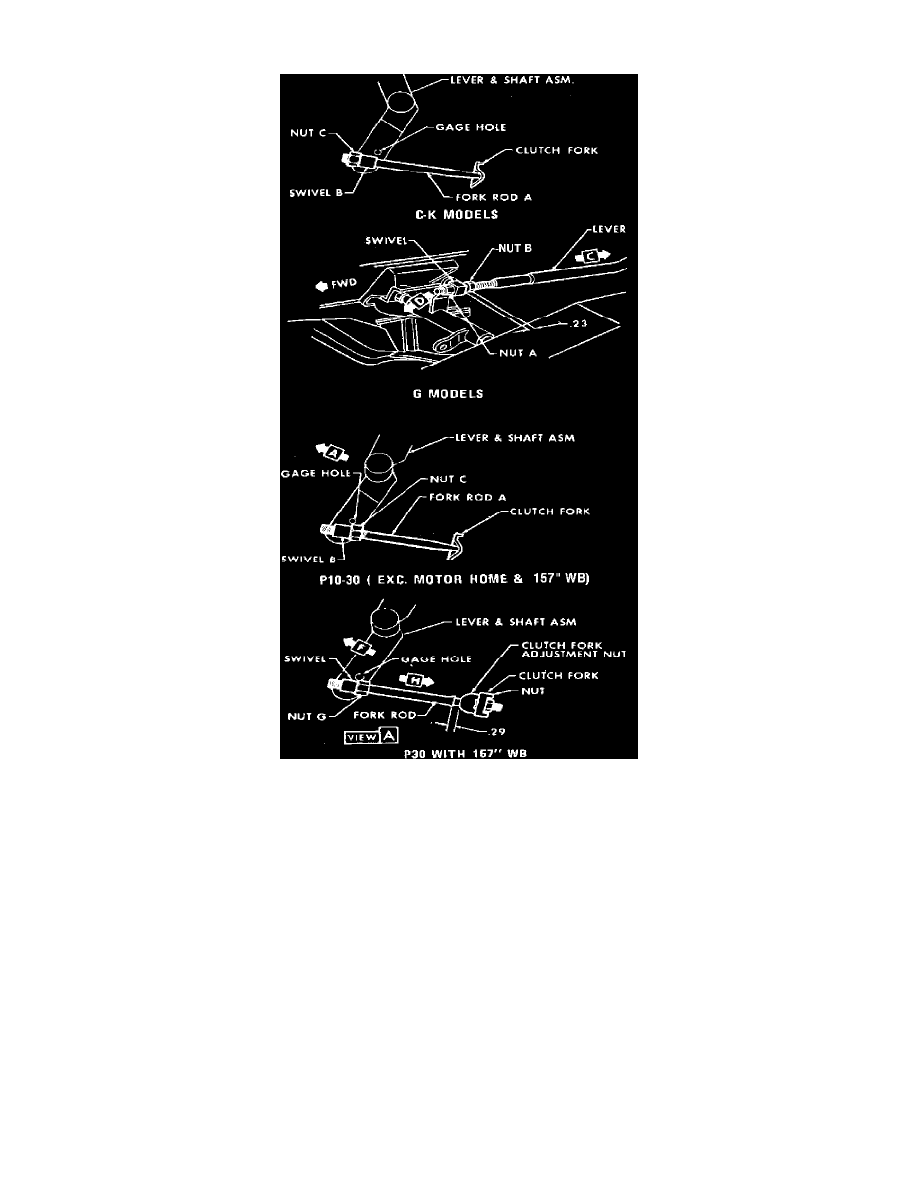

Check operation of clutch assembly and adjust clutch as required.
