S15/T15 2WD Jimmy V6-262 4.3L (1991)

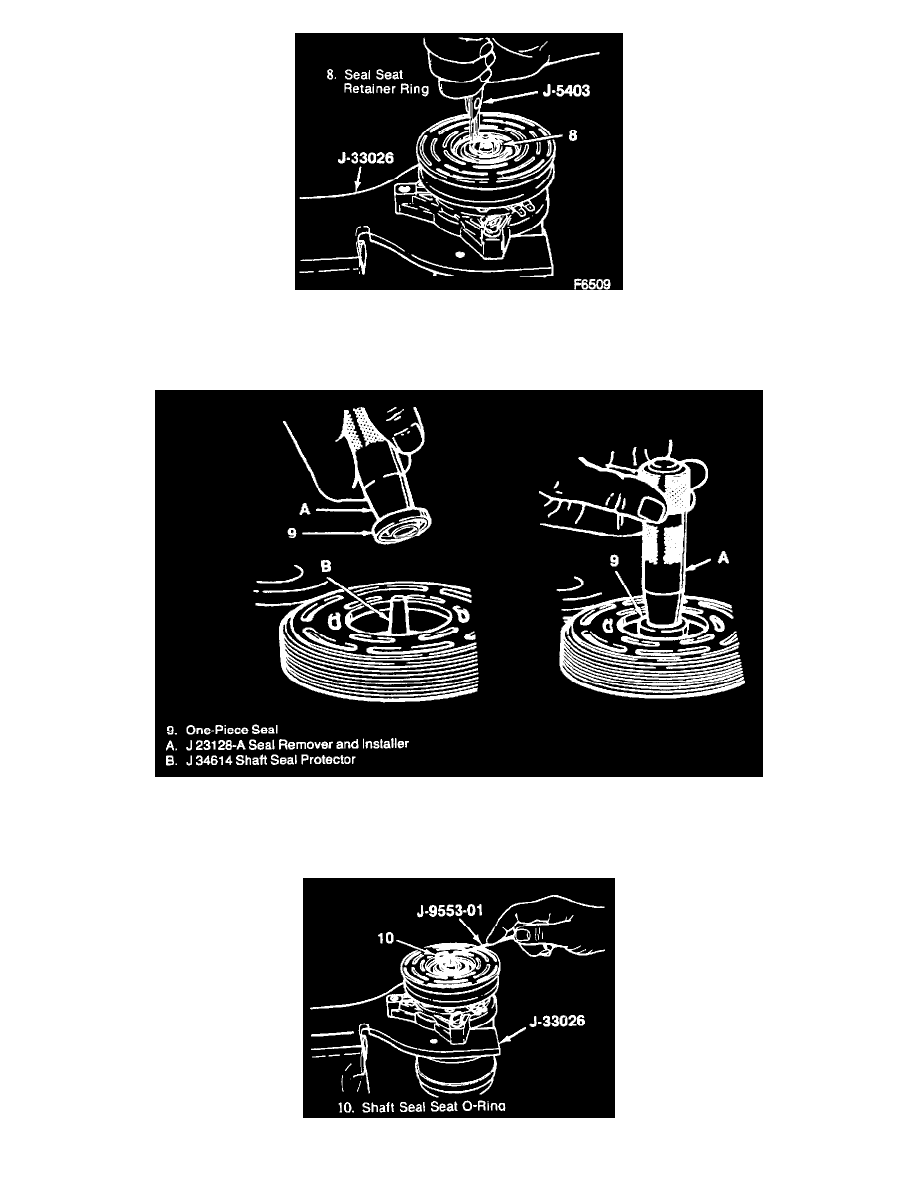

Removing Or Installing The Shaft Lip Seal Retaining Ring
2. Shaft seal retainer ring (8) using J 5403.
-
Clean the compressor neck area around the shaft (20), the exposed part of the shaft seal (9) and the O-ring seal groove.
Removing Or Installing Shaft Lip Seal
3. Shaft lip seal (9) using J 23128-A.
-
Insert J 23128-A into the shaft lip seal, tighten and remove lip seal.
