S15/T15 2WD Jimmy V6-262 4.3L (1991)

Page 1
background image

Engine Control Module: Specifications

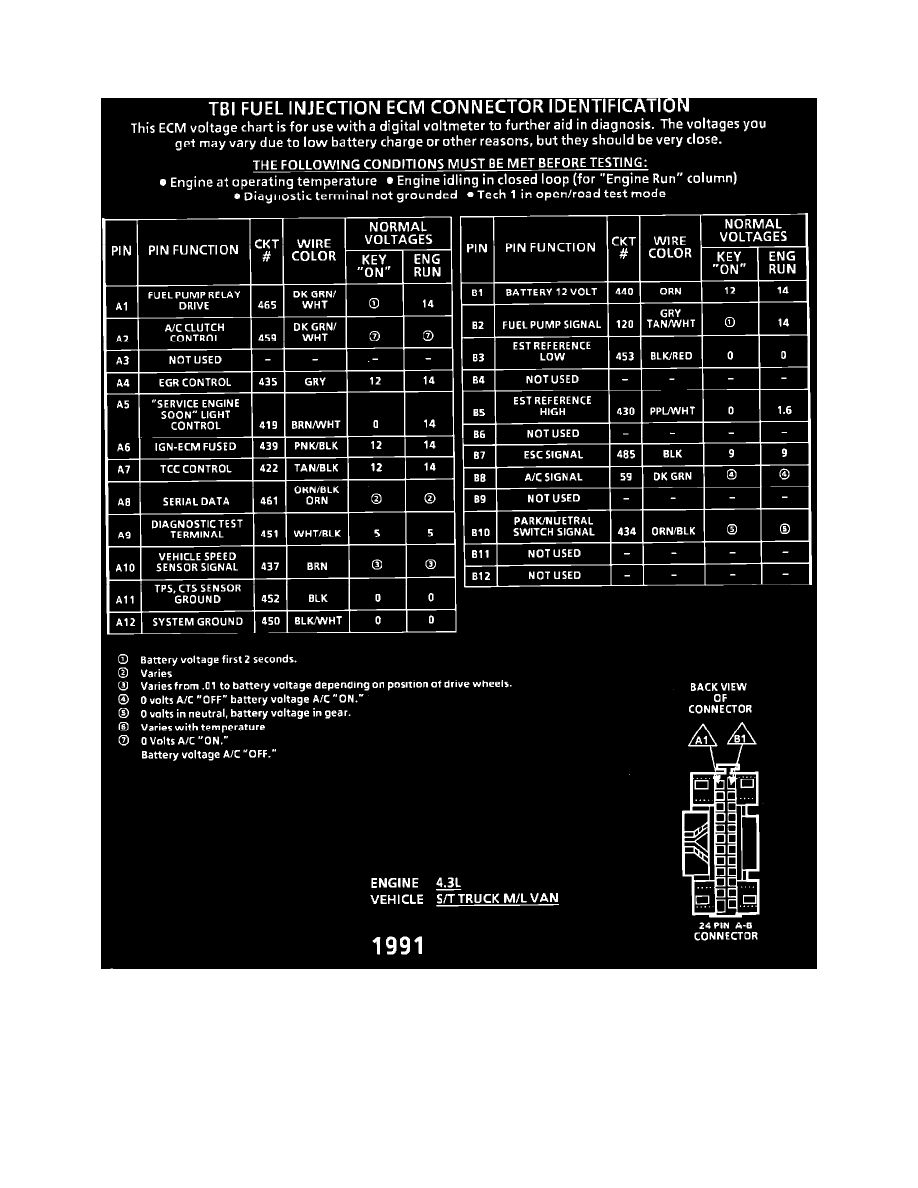

Computer Terminal Voltage Specifications

ECM Connector Terminal End View (Part 1 Of 2)
