S15/T15 2WD Jimmy V6-262 4.3L VIN W CPI (1993)

Page 1
background image

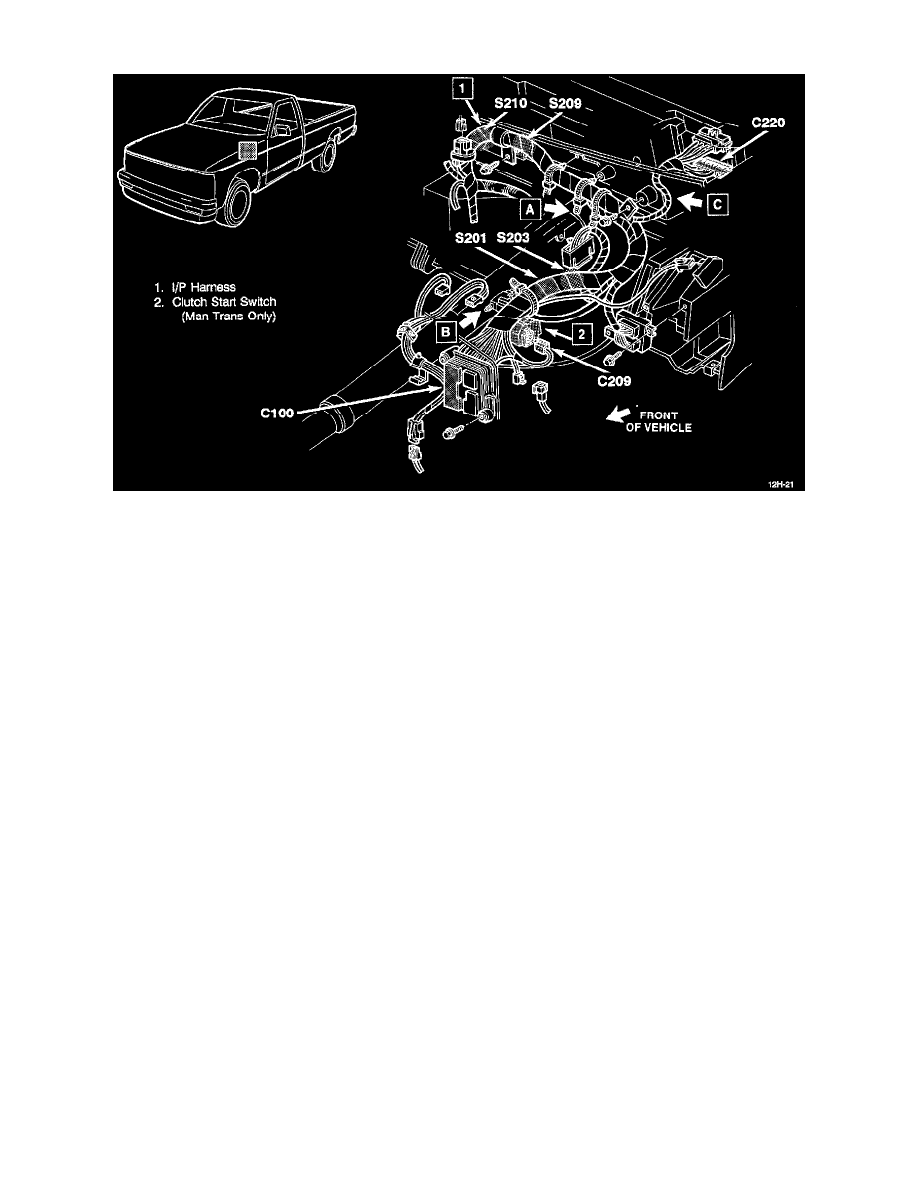

Clutch Start Switch: Locations

LH I/P Harness Wiring

Clutch Switch

At clutch pedal arm support bracket
