Savana 3500 V8-6.6L DSL Turbo VIN 6 (2007)
Steering Column: Service and Repair
Linear Shift Assembly Replacement
Linear Shift Assembly Replacement
Removal Procedure
Caution: Refer to SIR Caution .
1. Disable the SIR system. Refer to SIR Disabling and Enabling .
2. Remove the upper and lower trim covers.
3. Remove the shift lever assembly.

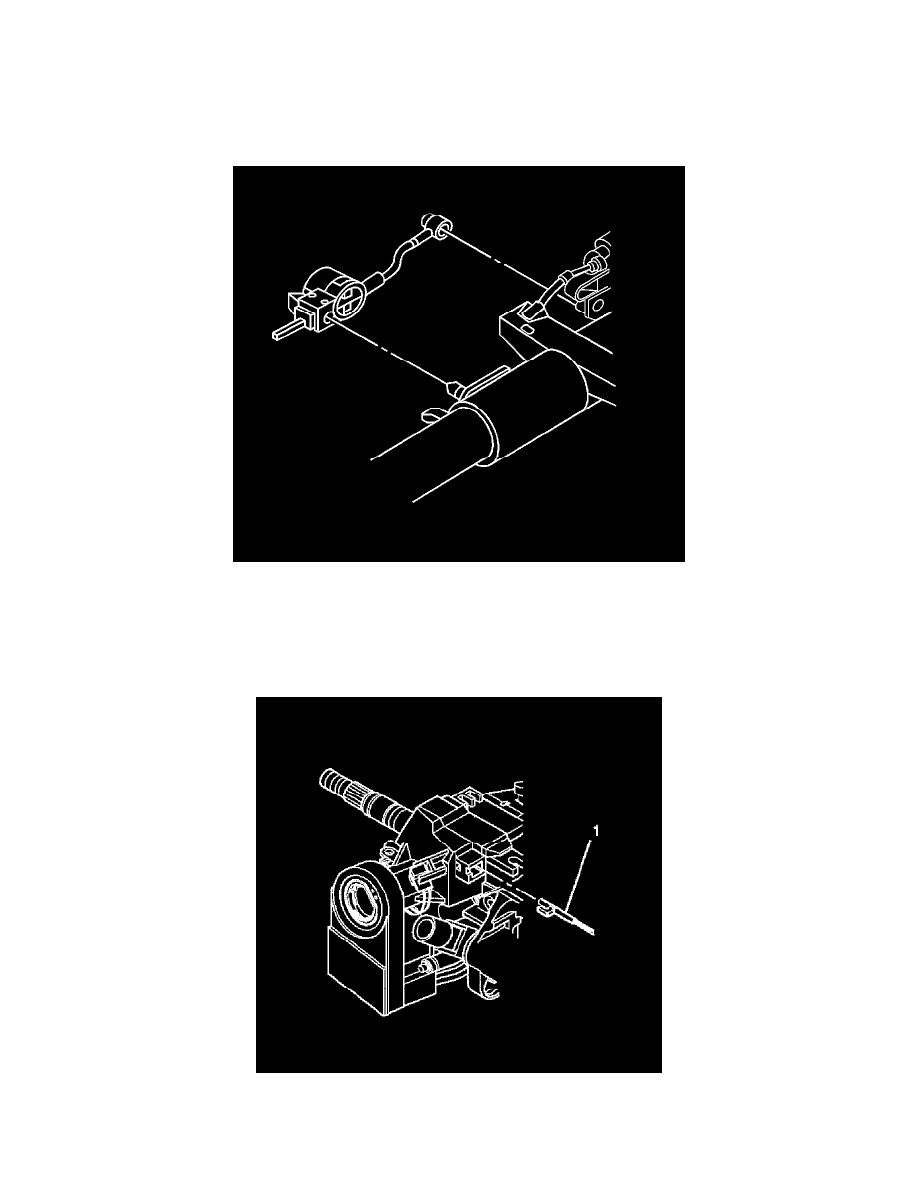

4. With a screwdriver carefully pry the automatic transmission shift lock control away from the steering column jacket.
5. The lock cylinder should be in the OFF-LOCK position.
Important: Do NOT remove the tape on the park lock cable. If the tape is removed from the park lock cable, you MUST order a new
