Savana 3500 V8-6.6L DSL Turbo VIN 6 (2007)
5. Adjust the automatic transmission shift lock control.

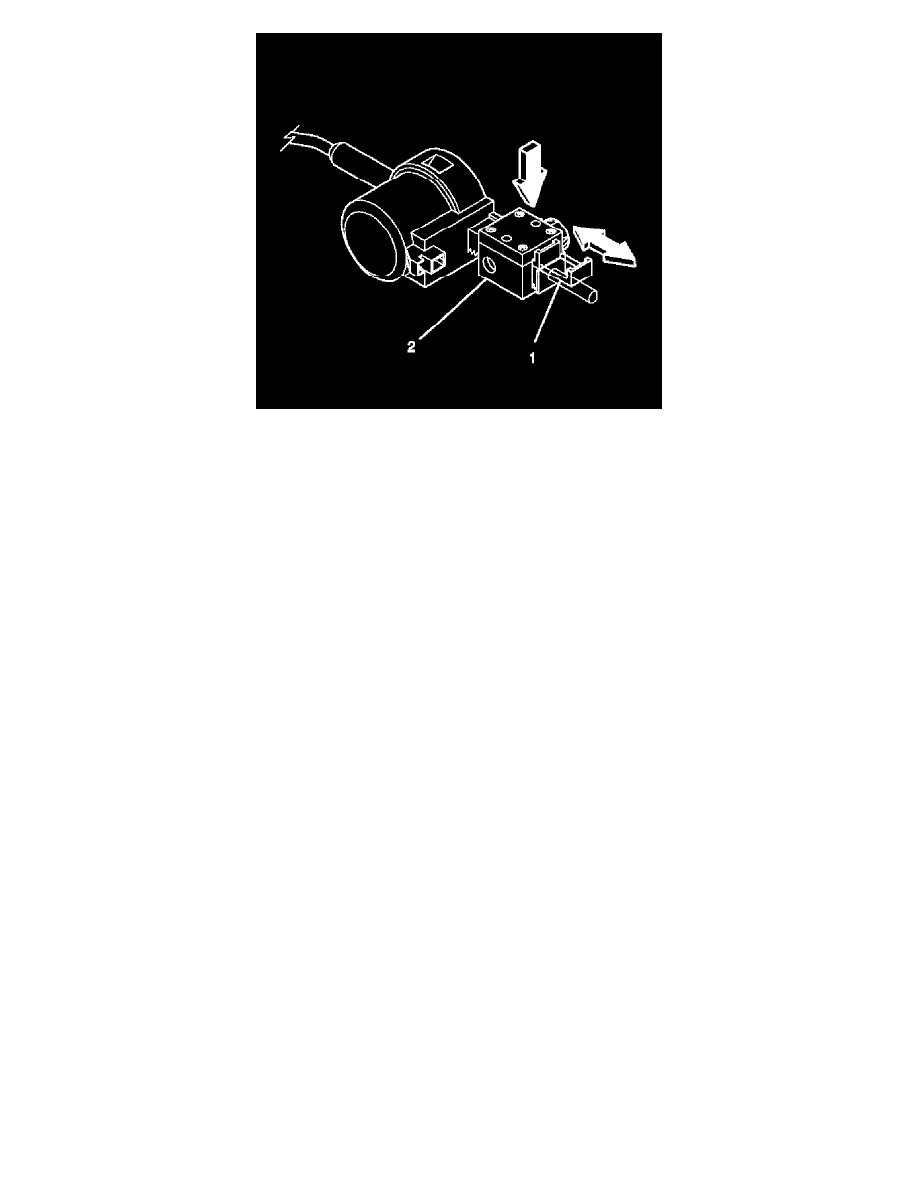

1. Pull the tab (1) out on the block side (2) of the automatic transmission shift lock control.
2. Press on the adjuster block (2) to compress the internal adjuster spring to disengage the adjuster teeth. Slide the adjuster block as far away
from the solenoid as possible.
3. Lock in place by pushing the tab (1) back in.
6. Inspect the automatic transmission shift lock control.
1. The automatic transmission shift lock control must lock the gear shift lever when it is put into the PARK position.
2. When the column is installed in the vehicle you will not be able to shift the gear shift lever out of the PARK position without pressing on the
brake pedal. The solenoid will be energized.
3. Readjust if needed.
7. Install the shift lever assembly.
8. Install the upper and lower trim covers.
9. Enable the SIR system. Refer to SIR Disabling and Enabling .
