Savana 3500 V8-6.6L DSL Turbo VIN 6 (2007)

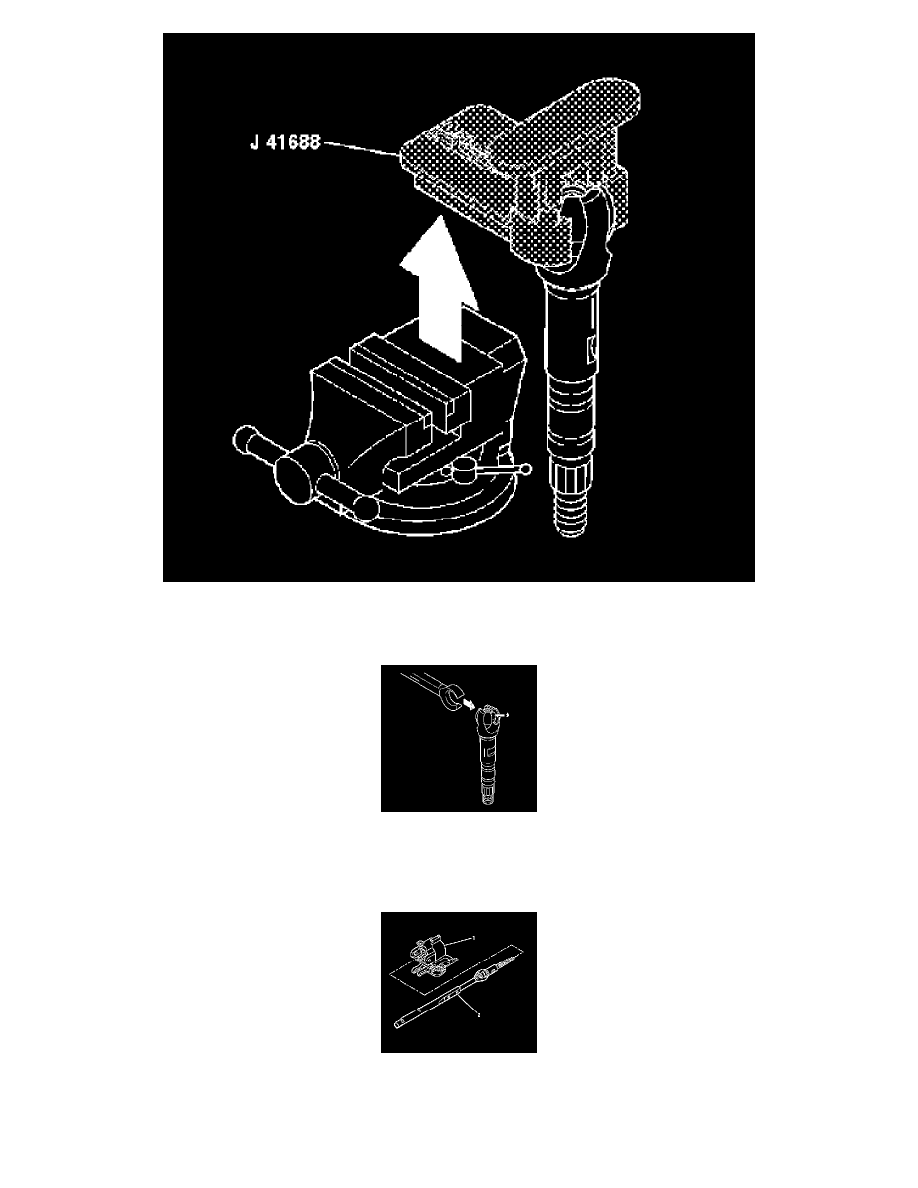

9. Remove the race and upper shaft assembly and J 41688 from the vise.
10. Disassemble J 41688 by separating the base.
11. Remove the race and upper shaft assembly, which is now attached to the centering sphere, from J 41688 .
12. Lubricate the exposed steering shaft with GM P/N 12345718 (Canadian P/N 10953516).
13. Align the lower steering shaft assembly to the race and upper shaft assembly by using the alignment marks.
14. Tilt the lower steering shaft assembly at 90 degrees to the race and upper shaft assembly.
15. Install the lower steering shaft assembly onto the race and upper shaft assembly.
16. Install the steering shaft assembly (2) into the steering column tilt head assembly (1).
