Savana 3500 V8-6.6L DSL Turbo VIN 6 (2007)

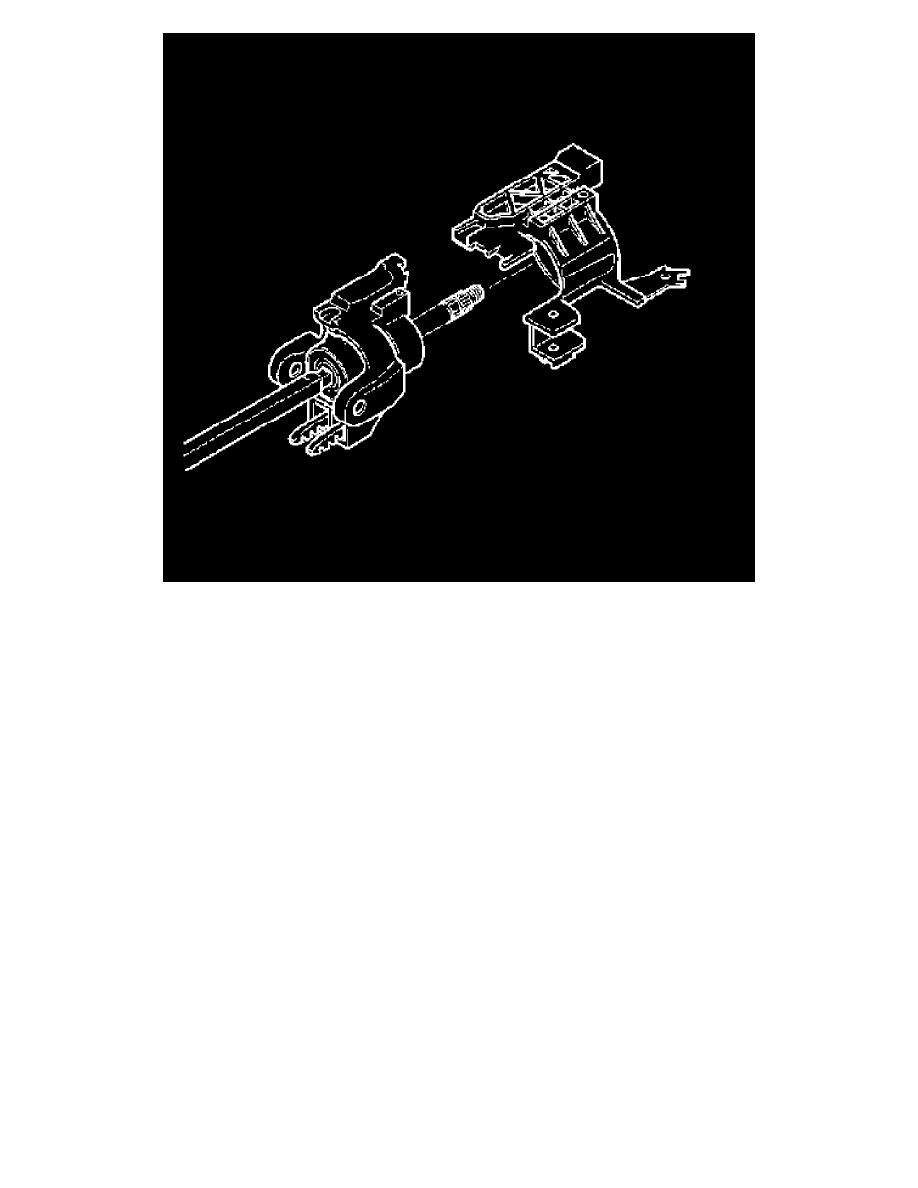

1. Install the tilt head onto the steering shaft.
2. Install the tilt head housing and steering shaft as an assembly.
Important: The switch mounting bracket must be pressed firmly against the steering column tilt head.
3. Slide the turn signal switch housing onto the steering column shaft assembly.
4. Install the turn signal and multifunction switch assembly only.
5. Install the turn signal cancel cam assembly.
6. Enable the SIR system. Refer to SIR Disabling and Enabling .
Steering Column Trim Covers Replacement
Steering Column Trim Covers Replacement
Removal Procedure
Caution: Refer to SIR Caution .
1. Disable the SIR system. Refer to SIR Disabling and Enabling .
Caution: Refer to Battery Disconnect Caution .
2. Disconnect the battery negative cable.
3. Remove the steering wheel.
4. Remove the gap hider.
