Savana 3500 V8-6.6L DSL Turbo VIN 6 (2007)

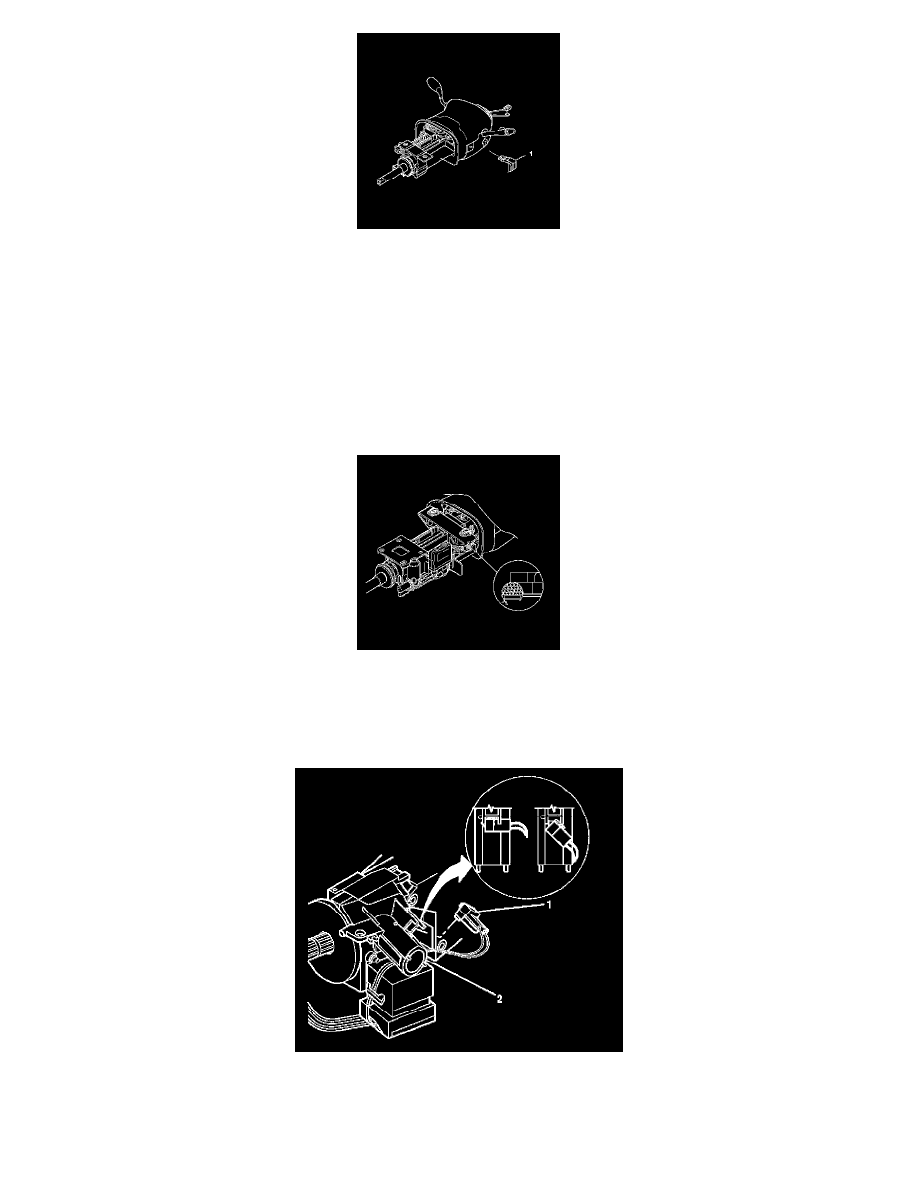

6. Install the tilt lever (1).
7. Install the gap hider.
8. Install the steering wheel.
9. Connect the battery negative cable.
10. Enable the SIR system. Refer to SIR Disabling and Enabling .
Steering Column Wiring Harness Replacement
Steering Column Wiring Harness Replacement
Removal Procedure
Caution: Refer to SIR Caution .
1. Disable the SIR system. Refer to SIR Disabling and Enabling .
2. Remove the upper and lower trim covers.
3. Remove the wire harness strap.
4. Rotate the key alarm connector (1) 90 degrees.
5. Gently pull the key alarm connector (1) out of the ignition lock cylinder case assembly (2).
6. Disconnect the connector from the ignition switch assembly.
7. Remove the wires encased in the ignition switch clip, which is located on the side of the ignition switch.
