GMC Workshop Service and Repair Manuals > Sierra 1500 2WD V8-5.3L Hybrid (2004) > Starting and Charging | Power and Ground Distribution | Multiple Junction Connector | Component Information | Diagrams | C100 - C198

Page 1

Multiple Junction Connector: Diagrams
C404 - C411

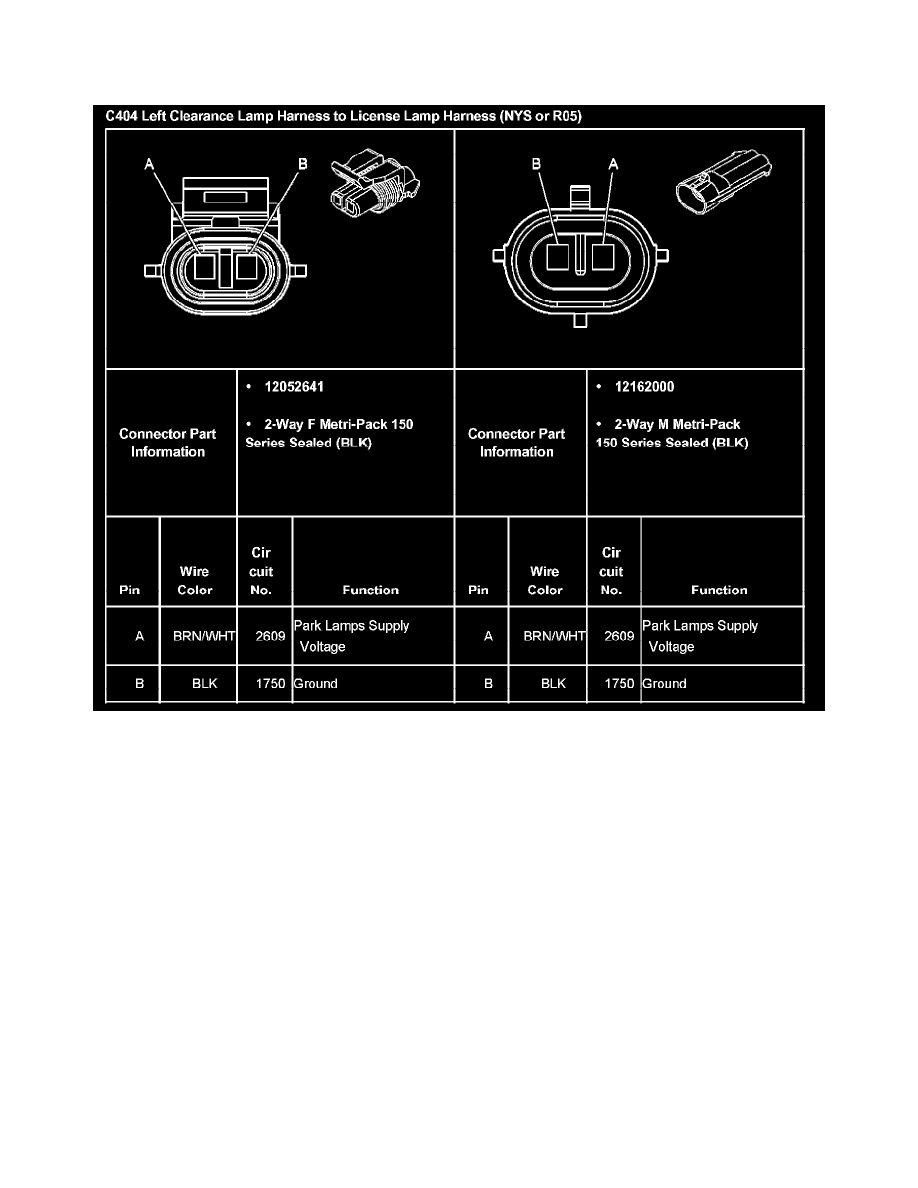

C404 Left Clearance Lamp Harness To License Lamp Harness (With RPO Codes NYS Or R05)
