Steering Angle Sensor|Service and Repair > < Battery Current Sensor|Service and Repair|Page 1416

Sierra 1500 2WD V8-6.0L Hybrid (2010)

  • Sensors and Switches
  • Sensors and Switches - Steering and Suspension
  • Sensors and Switches - Steering
  • Steering Angle Sensor
  • Component Information
  • Diagrams

Page 1
background image

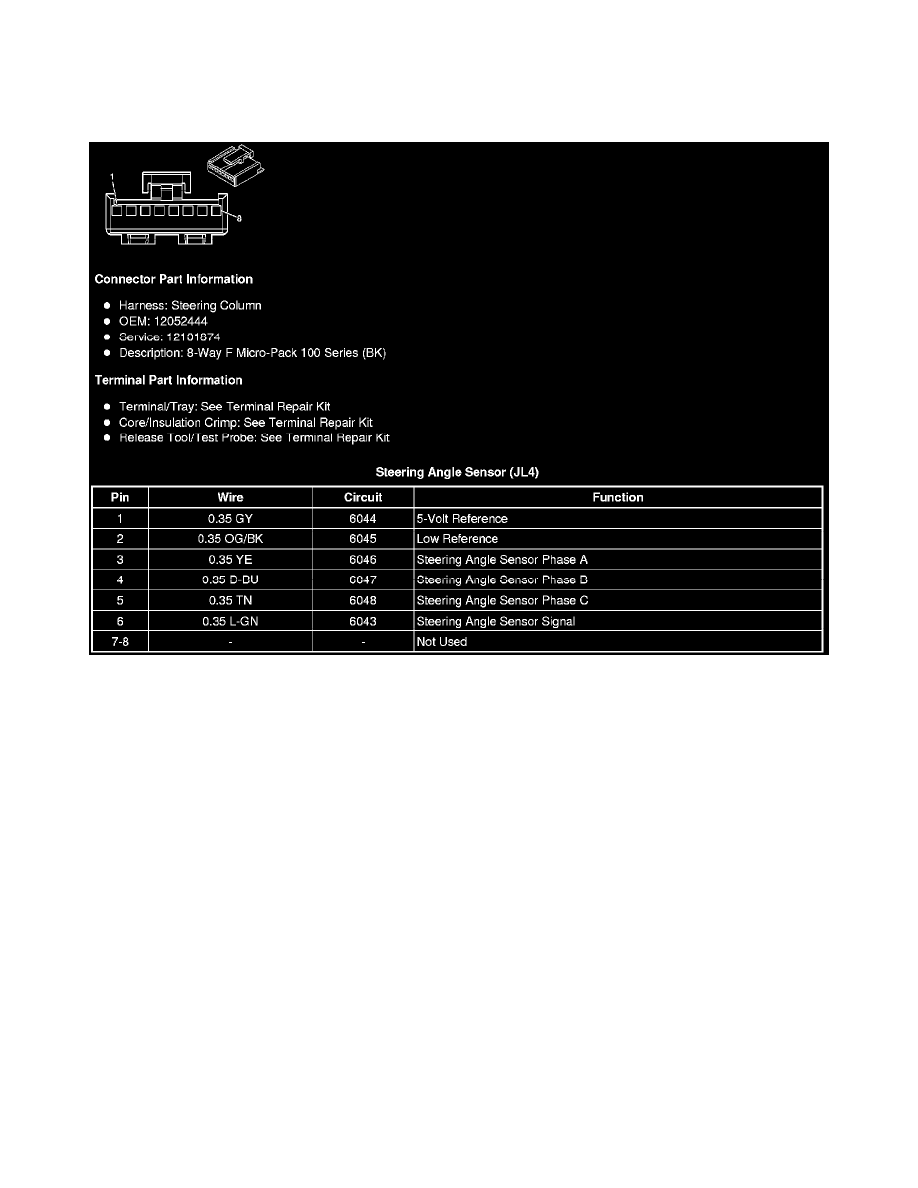

Steering Angle Sensor: Diagrams

Component Connector End Views

Steering Angle Sensor (JL4)

  • Sensors and Switches
  • Sensors and Switches - Steering and Suspension
  • Sensors and Switches - Steering
  • Steering Angle Sensor
  • Component Information
  • Diagrams
