Power Door Lock Switch > < Interior - Loose/Unwanted Seat Movement|Page 18658

Sierra 1500 4WD V8-5.3L VIN B (2005)

  • Body and Frame
  • Sensors and Switches - Body and Frame
  • Door Lock Cylinder Switch
  • Component Information
  • Diagrams

Page 1
background image

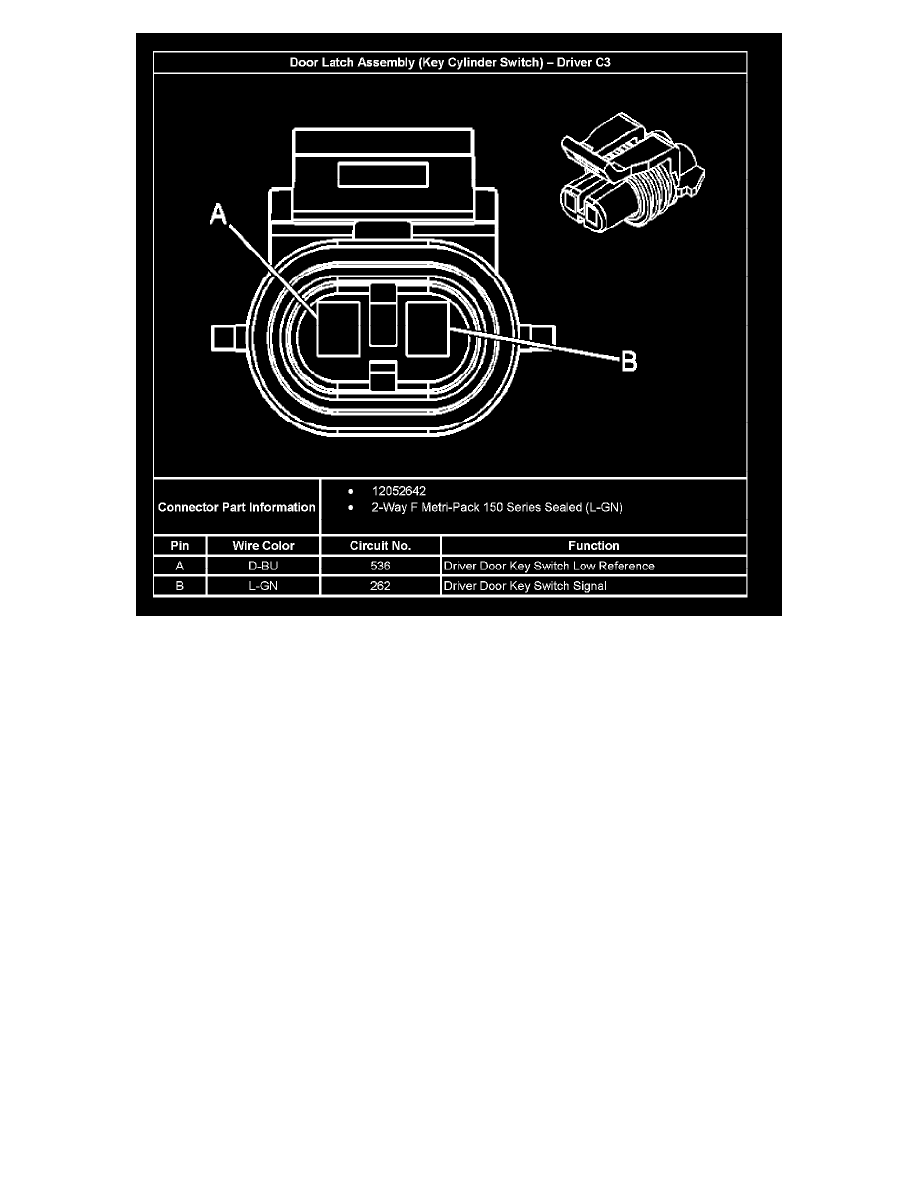

Door Latch Assembly (Key Cylinder Switch) - Driver C3

  • Body and Frame
  • Sensors and Switches - Body and Frame
  • Door Lock Cylinder Switch
  • Component Information
  • Diagrams
