Sierra 3500 2WD V8-6.6L DSL Turbo VIN 2 (2004)
Alternator: Service and Repair

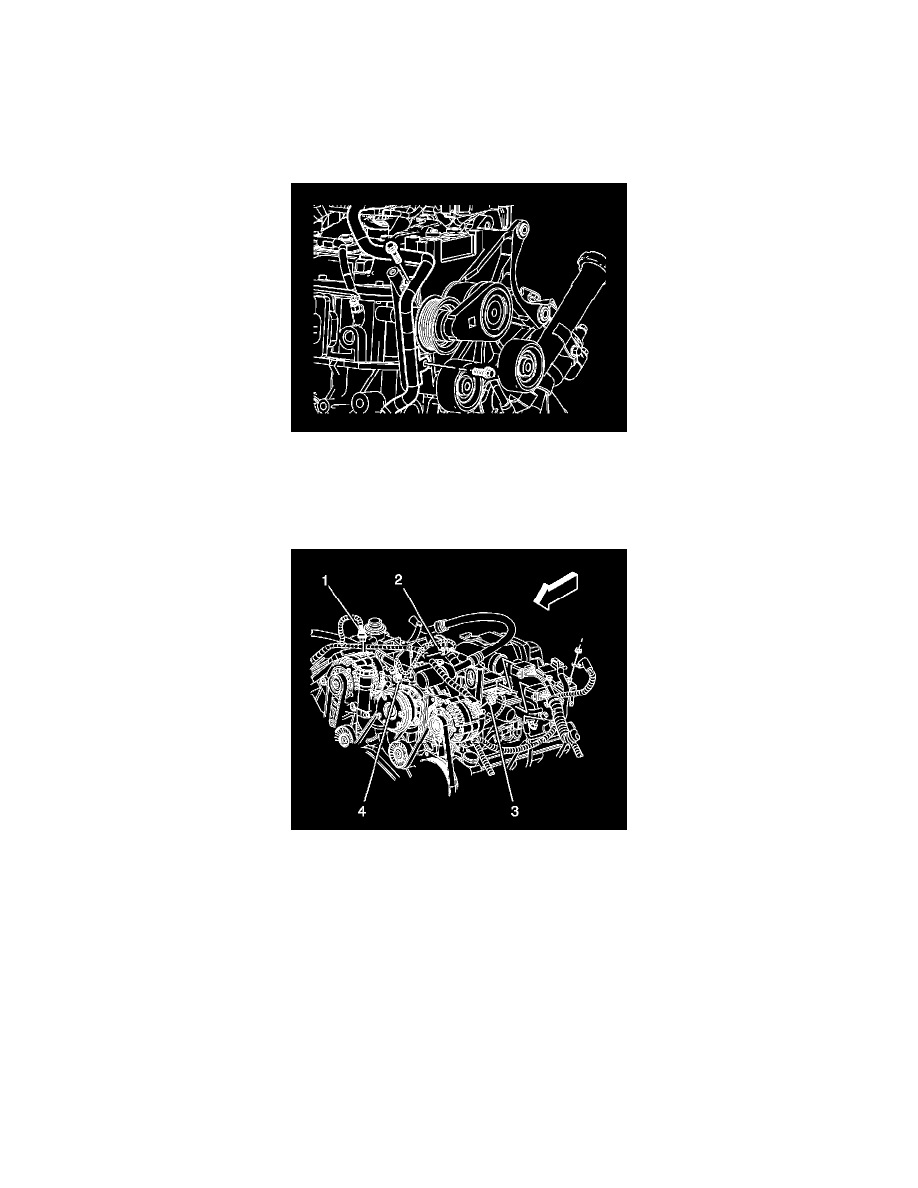

Generator Bracket Replacement
GENERATOR BRACKET REPLACEMENT
REMOVAL PROCEDURE
CAUTION: Refer to Battery Disconnect Caution in Service Precautions.
1. Disconnect the negative battery cable.
2. Remove the air cleaner.
3. Remove the drive belt.
4. Remove the upper fan shroud.
5. Remove the electrical harness clip bolts.
6. Disconnect the generator electrical connector (1).
