GMC Workshop Service and Repair Manuals > Sierra 3500 4WD V8-6.0L VIN U (2004) > Starting and Charging | Power and Ground Distribution | Multiple Junction Connector | Component Information | Diagrams | C100 - C198 | Page 9103

C100 - C198|Page 9104 > < C100 - C198|Page 9102

Page 9

background image

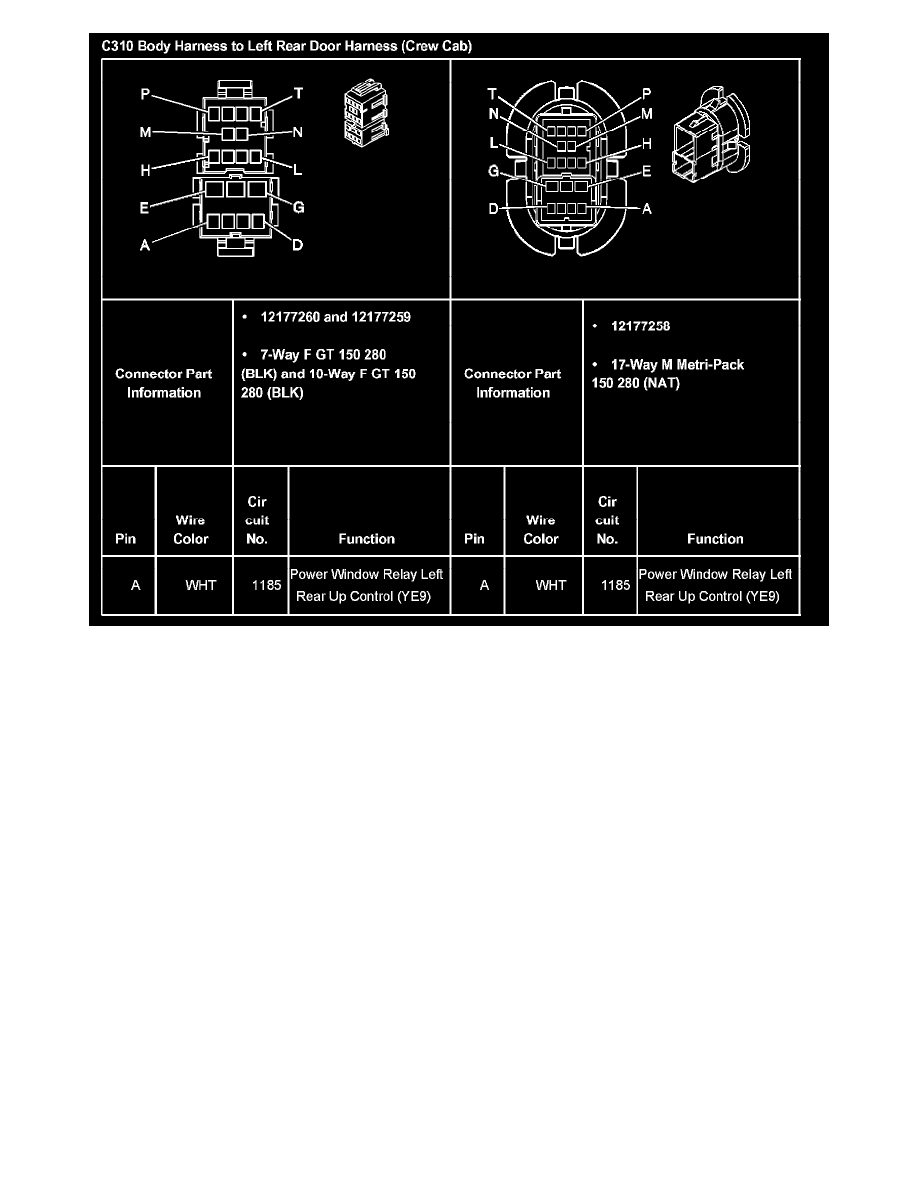

C310 Body Harness To Left Rear Door Harness (Crew Cab) Part 1

Starting and Charging
Power and Ground Distribution
Multiple Junction Connector / Diagrams / C100 - C198
Page 9103

C100 - C198|Page 9104 > < C100 - C198|Page 9102
