NVG 246-NP8 - Transfer Case|Page 12601 > < Transfer Case - NVG 149-NP3|Page 12594

Sierra 3500 4WD V8-8.1L VIN G (2006)

  • Transmission and Drivetrain
  • Transfer Case
  • Actuators and Solenoids - Transfer Case
  • Transfer Case Actuator
  • Component Information
  • Diagrams
  • NVG 246-NP8 - Transfer Case

Page 1
background image

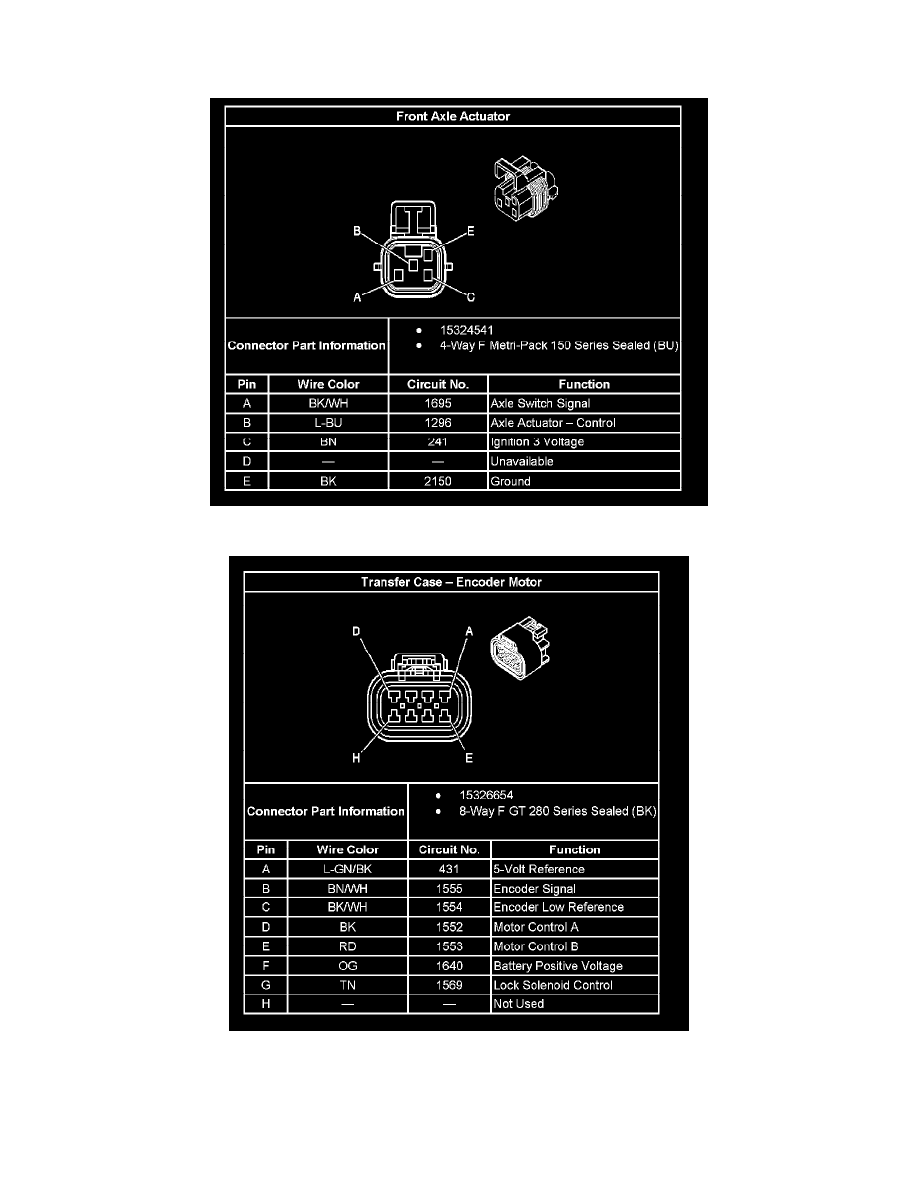

Transfer Case Actuator: Diagrams
NVG 246-NP8 - Transfer Case

Front Axle Actuator

Transfer Case - Encoder Motor
