Sierra 3500 Denali 4WD V8-6.0L (2011)
Oxygen Sensor: Service and Repair
Heated Oxygen Sensor Replacement - Bank 1 Sensor 1 (2500 Series - Cab/Chassis)
Heated Oxygen Sensor Replacement - Bank 1 Sensor 1 (2500 Series - Cab/Chassis)
Removal Procedure
Caution: Refer to Heated Oxygen and Oxygen Sensor Caution (See: Service Precautions/Heated Oxygen and Oxygen Sensor Caution)
1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (See: Maintenance/Vehicle Lifting/Service and Repair).
2. Unbolt the front propeller shaft from the front differential, if equipped with four wheel drive (4WD). Refer to Front Propeller Shaft Replacement
(See: Transmission and Drivetrain/Drive/Propeller Shafts, Bearings and Joints/Drive/Propeller Shaft/Service and Repair/Front Propeller Shaft
Replacement).

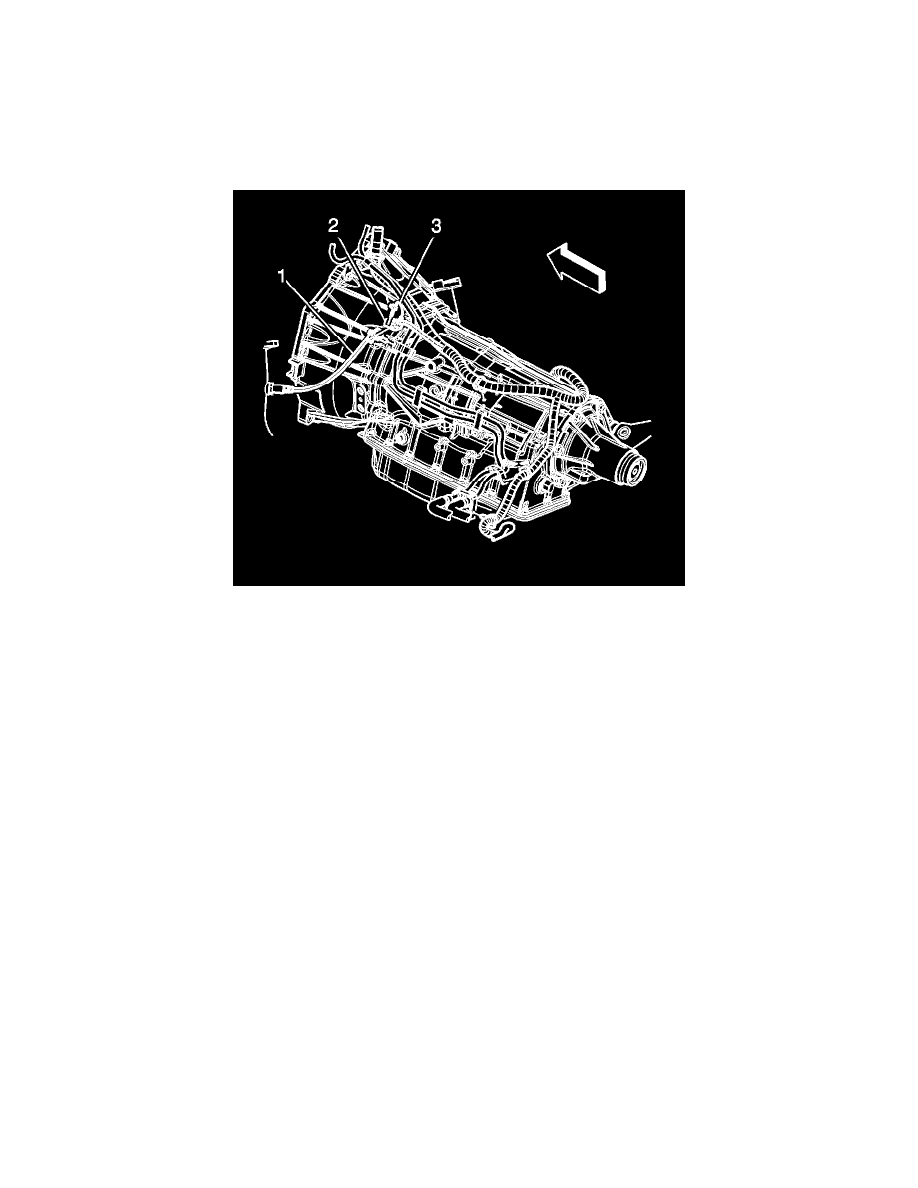

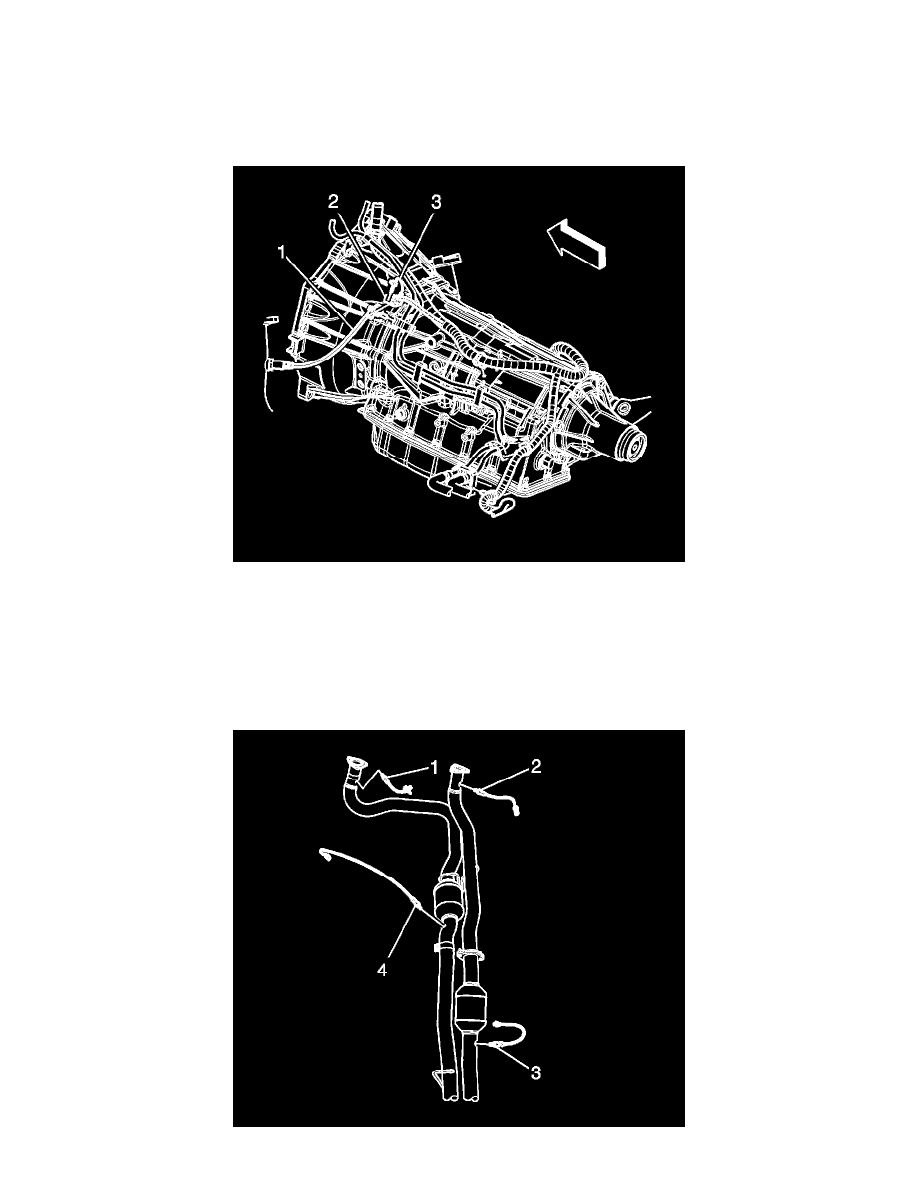

3. Remove the connector position assurance (CPA) retainer (3).
4. Disconnect the HO2S (1) electrical connector from the engine wiring harness electrical connector (2).
