Sierra Denali AWD V8-6.2L (2008)

  • Engine, Cooling and Exhaust
  • Engine
  • Actuators and Solenoids - Engine
  • Valve Deactivation Solenoid
  • Component Information
  • Diagrams

Page 1
background image

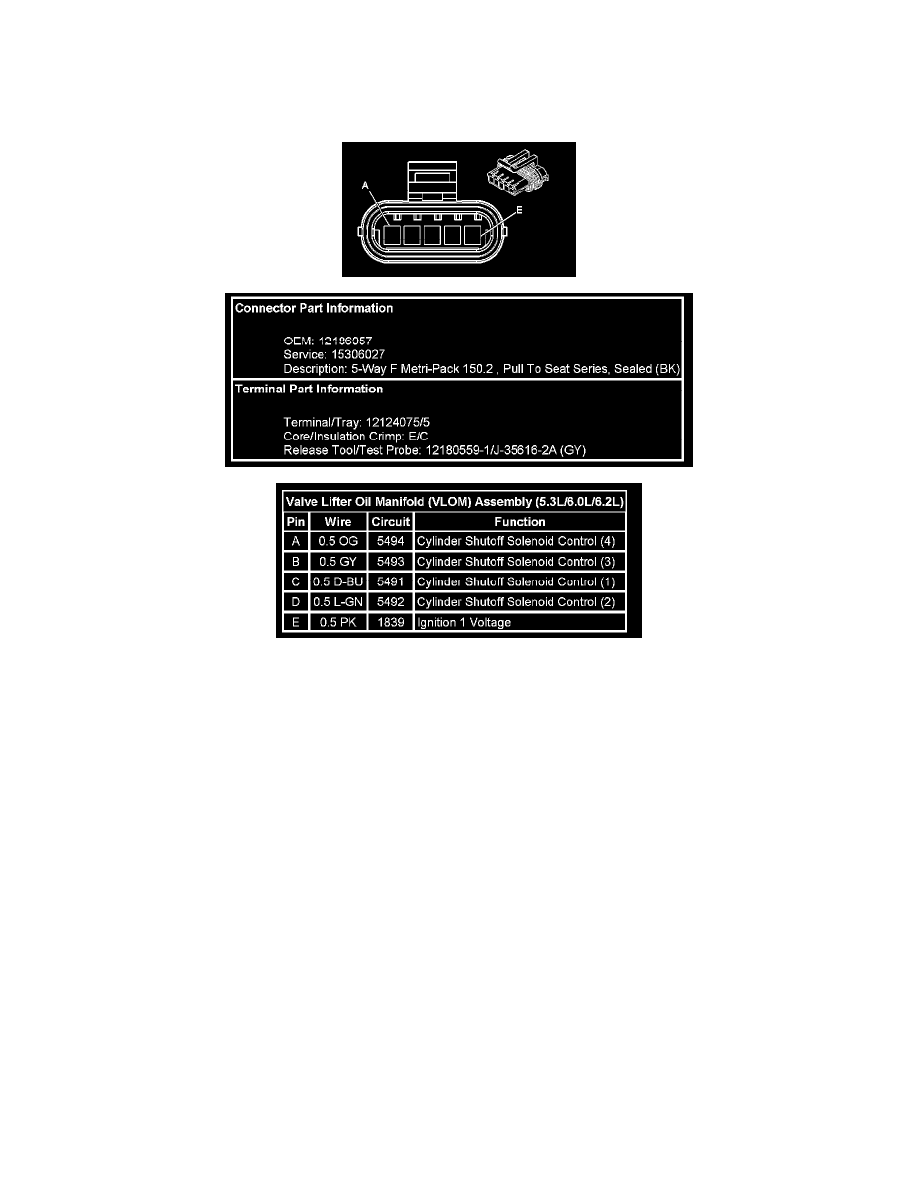

Valve Deactivation Solenoid: Diagrams

Component Connector End Views - Continued

Valve Lifter Oil Manifold (VLOM) Assembly (5.3L/6.0L/6.2L)

  • Engine, Cooling and Exhaust
  • Engine
  • Actuators and Solenoids - Engine
  • Valve Deactivation Solenoid
  • Component Information
  • Diagrams
