Page 1

Pressure Regulating Solenoid: Locations

Powertrain Component Views

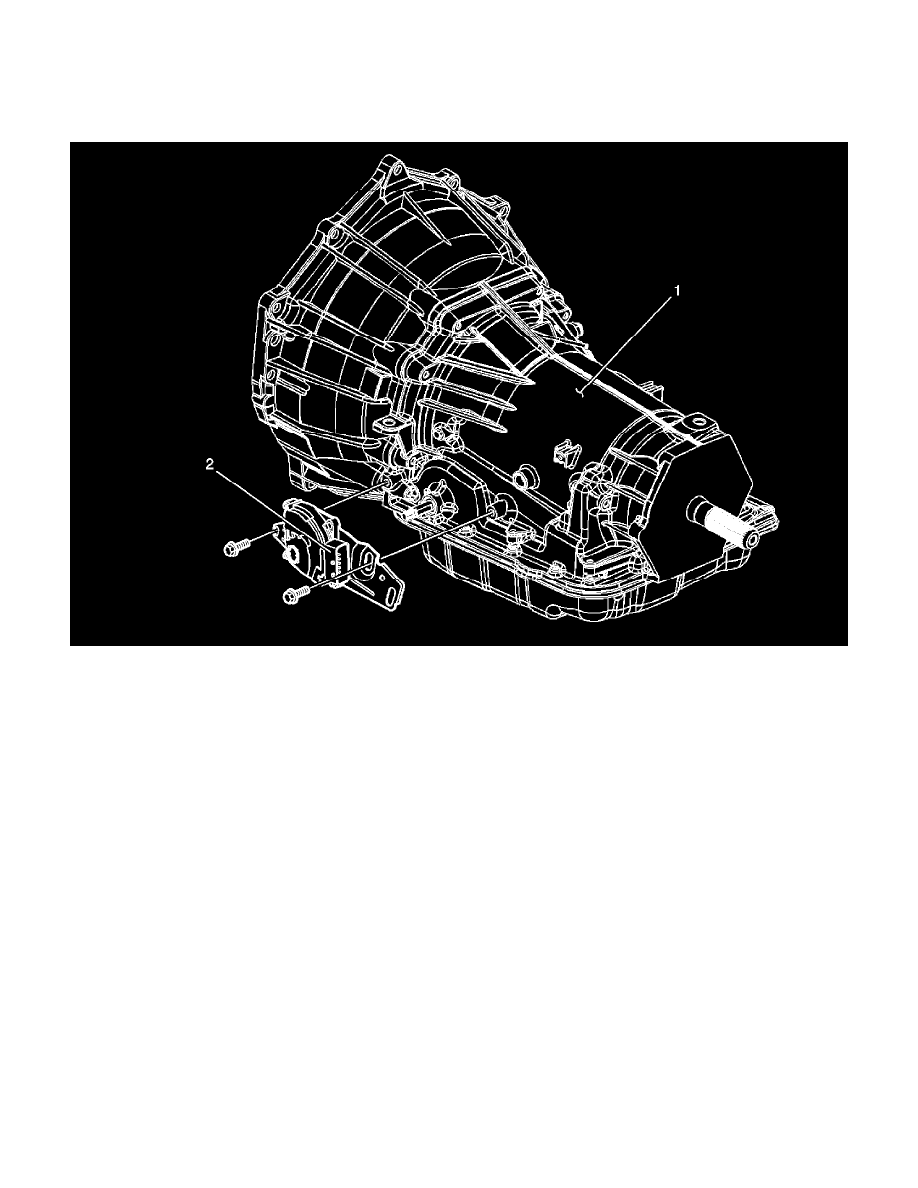

Left Side of the Transmission Components (M30)

Park Neutral Position (PNP) Switch

1 - Automatic Transmission
2 - Park/Neutral Position (PNP) Switch

Inside the Transmission (M30)
