V 3500 P/U 4WD V8-379 6.2L DSL (1988)

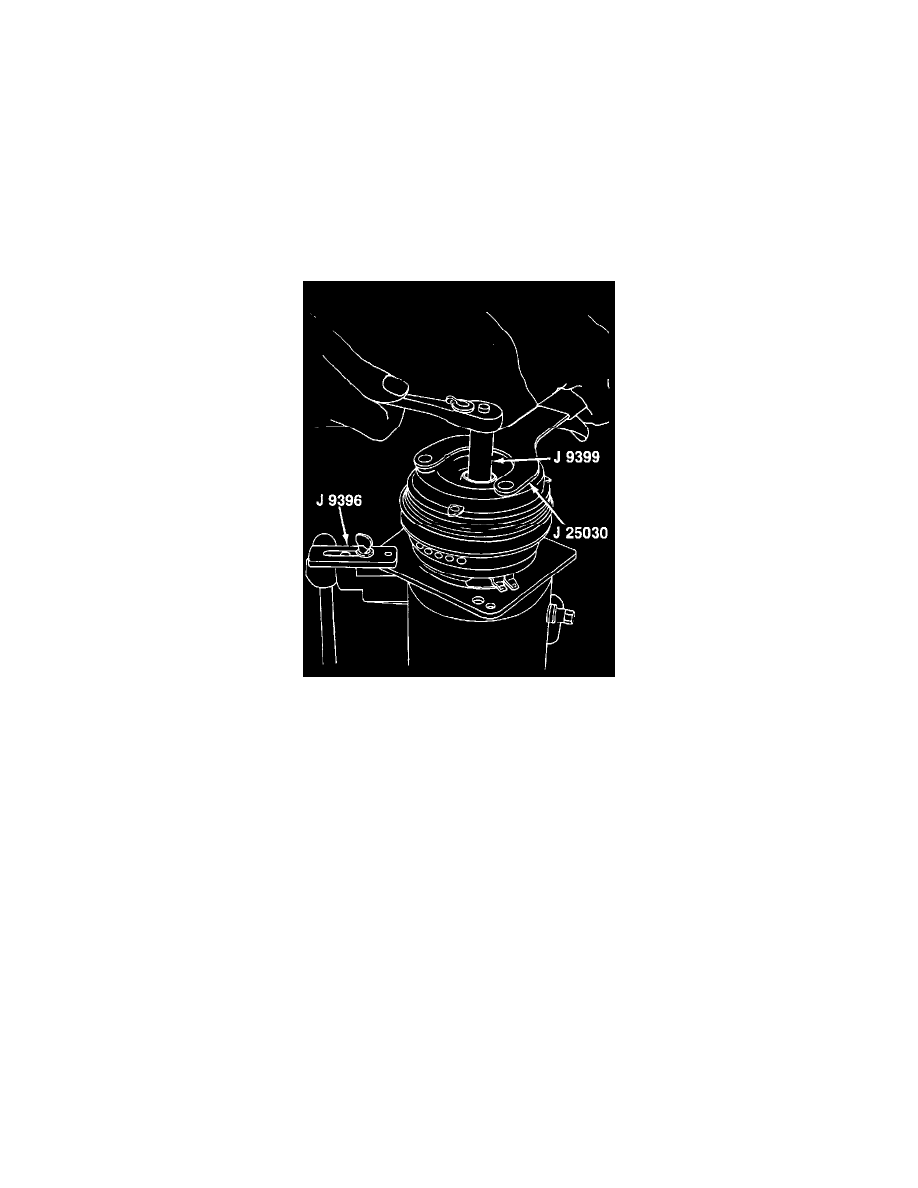

Removing The Pulley Rotor & Bearing Retaining Ring
2. Pulley bearing retainer (3) using J 6083.
3. Pulley (5).
Installing The Puller Pilot & Pulley Rotor Slot Location
^
Install J 33023-A to the front head.
Installing J-33020 In The Pulley Rotor Slots
^
Install J 33020 tangs into the inner circle of slots in the pulley (5) contact surface. Rotate J 33020 clockwise so the tangs will lock into the
segments between the slots.
