Yukon Denali 4WD V8-6.0L Hybrid (2011)
Negative: Locations
Passenger Compartment/Roof Component Views

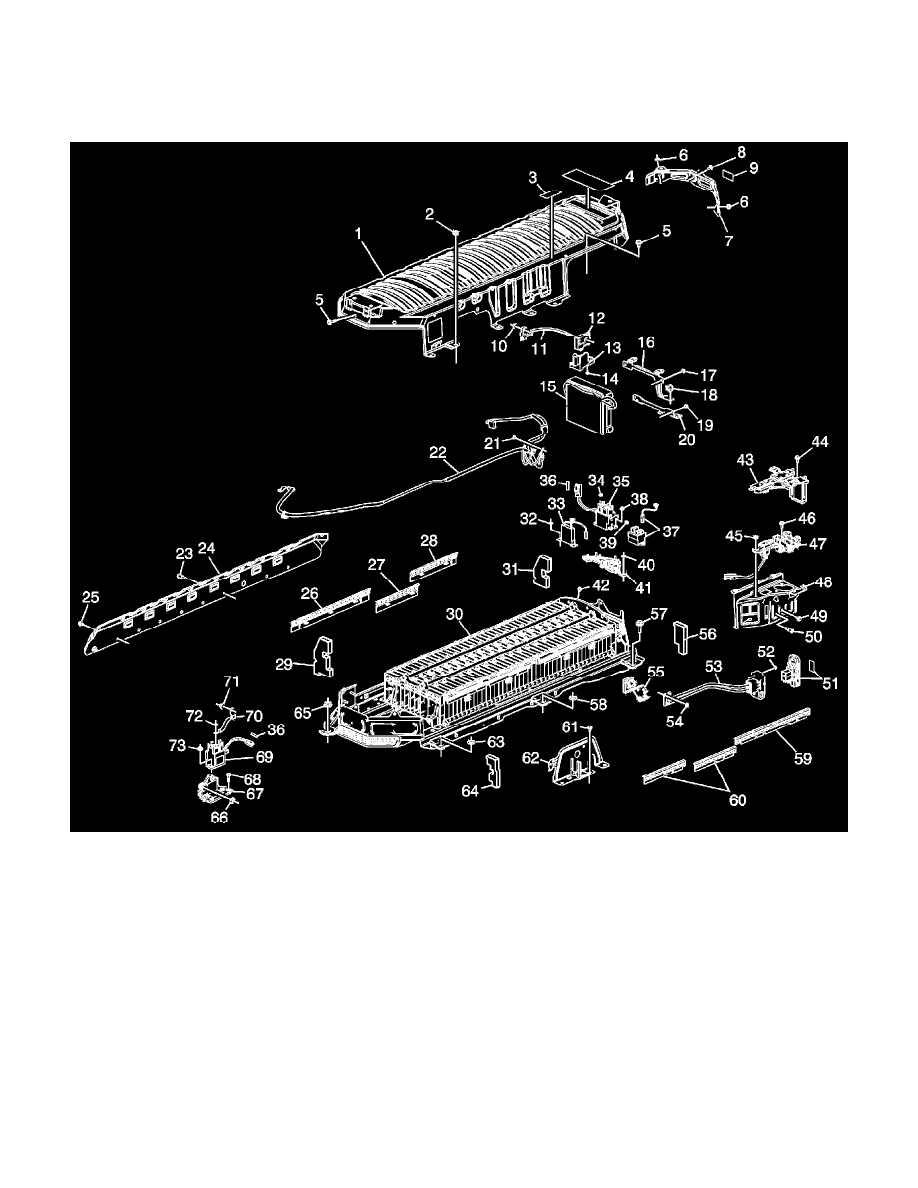

Drive Motor Battery Components (HP2)
1 - Battery Case Upper Cover Assembly
2 - Battery Upper Cover Nut
3 - Bar Code Label
4 - Battery Danger Label
5 - Drive Motor Battery Case Upper Cover Bolt
6 - Battery Side Cover Nut
7 - Drive Motor Battery Right Side Cover
8 - Drive Motor Battery Side Cover Bolt
9 - Battery Caution Label
10 - Drive Motor Battery Cable Assembly Nut
11 - Drive Motor Battery Positive Relay Cable Assembly
12 - Drive Motor Battery Current Sensor Assembly
13 - Drive Motor Generator Battery Current Sensor Bracket
14 - Drive Motor Battery Current Sensor Bolt
15 - Drive Motor Generator Battery Control Module Assembly
16 - Drive Motor Battery Control Module Bracket
17 - Drive Motor Battery Control Module Bracket Bolt
