Civic L4-1.3L Hybrid (2008)

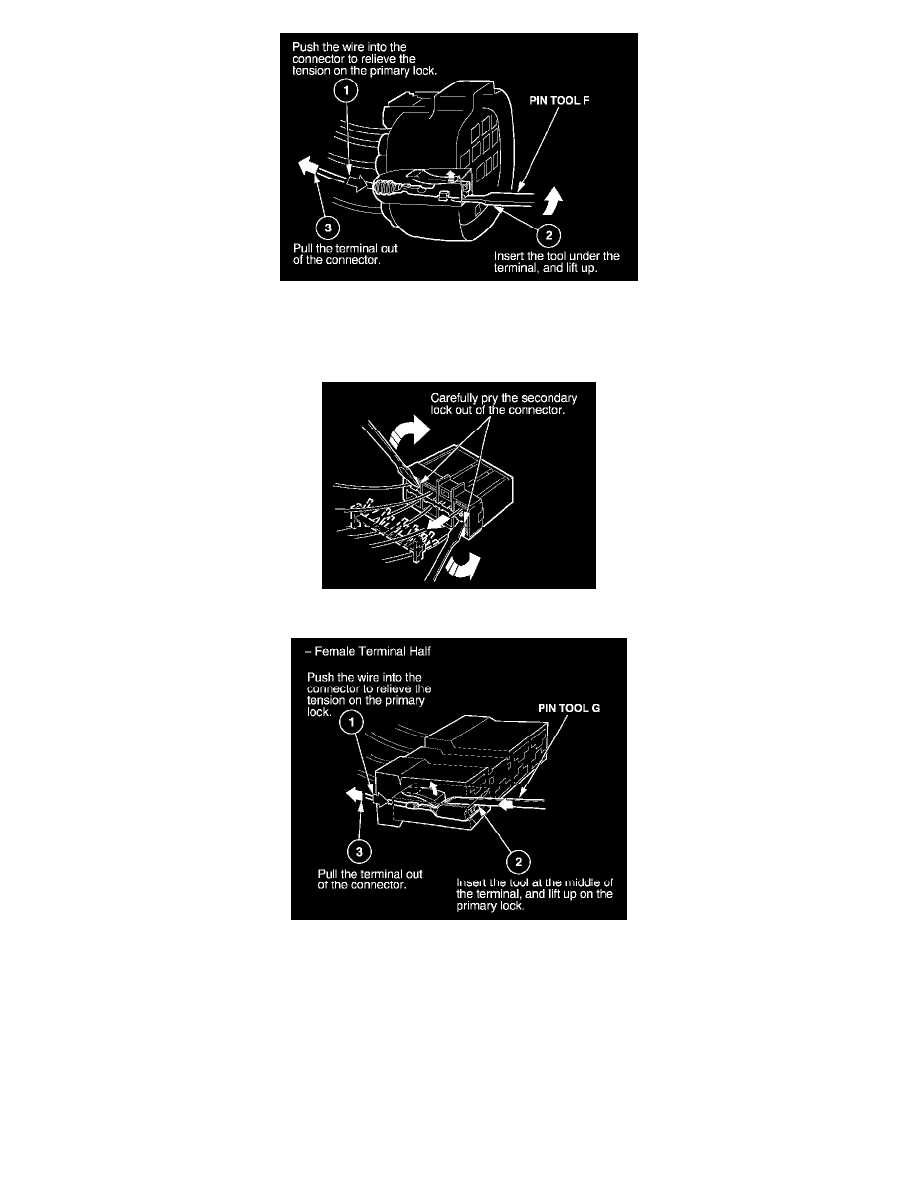

3. Remove the terminal (same procedure for male and female).
4. Go to HOW TO INSTALL NEW TERMINALS.
EXAMPLE C:
1. Remove the secondary lock.
2. Remove the terminal from the female half.
