Backup Lamp: Diagram Information and Instructions

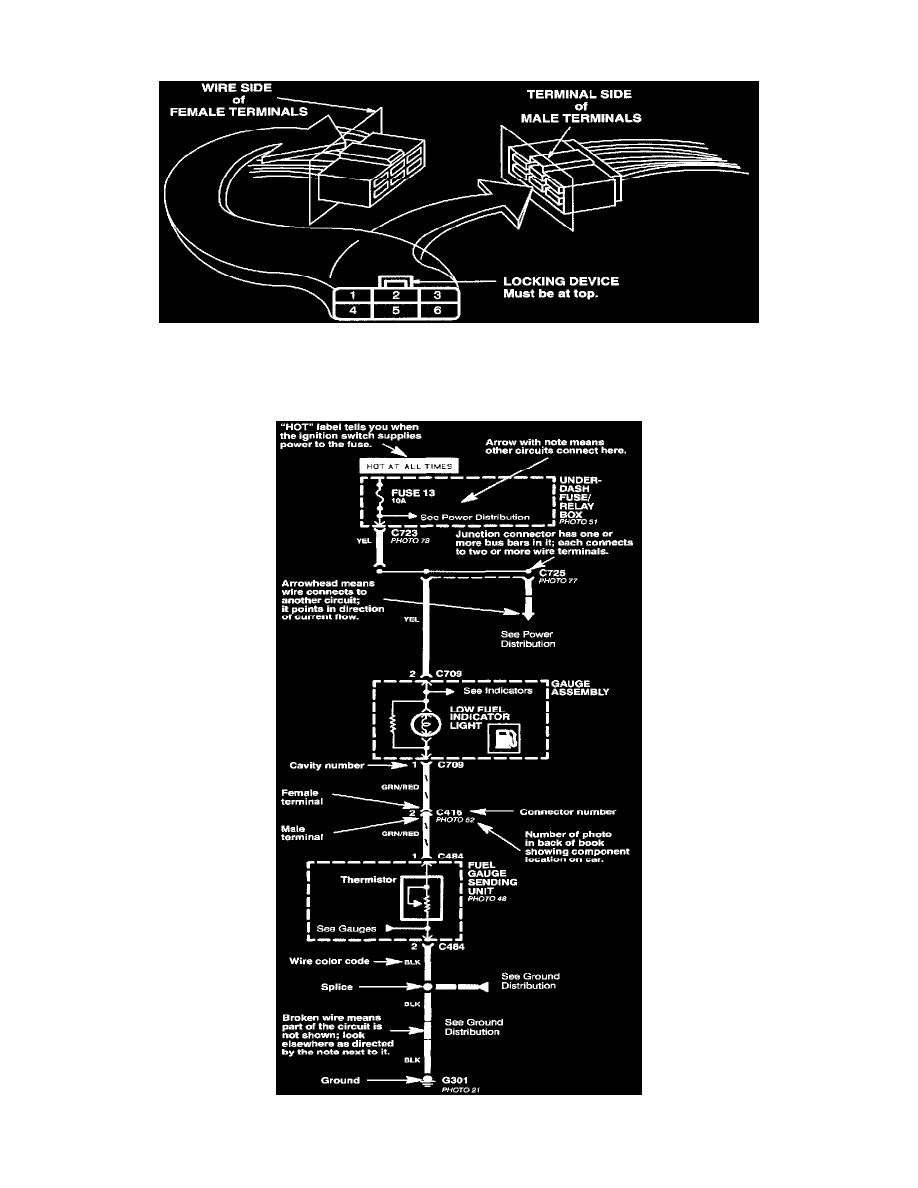

Cavity Numbering System

Circuit Schematics

Circuit Schematics
