Prelude L4-2157cc 2.2L DOHC (VTEC) MFI (2001)
Shift Solenoid: Testing and Inspection

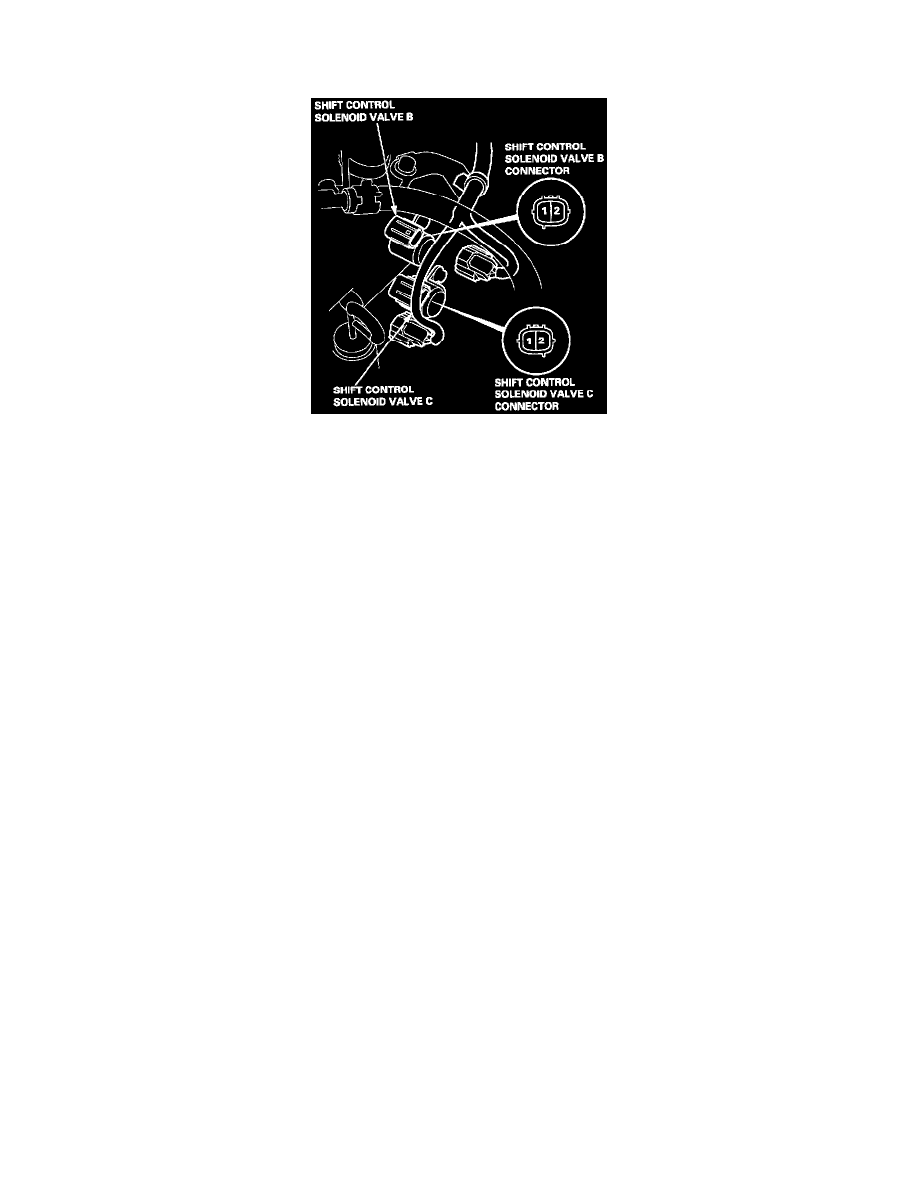

Shift Control Solenoid Valve B/C
1. Disconnect the shift control solenoid valve B or C connector.
2. Measure the resistance between the No. 1 terminal and No. 2 terminal of the shift control solenoid valve B or C.
STANDARD: 12 - 25 ohms
3. Replace the shift control solenoid valve B or C if the resistance is out of specification.
4. If the resistance is within the standard, connect the No. 2 terminal of the shift control solenoid valve B or C connector to the battery positive
terminal individually. A clicking sound should be heard. Replace the shift control solenoid valve B or C if no clicking sound is heard.
