S2000 L4-2.2L (2004)
Cruise Control Servo Cable: Adjustments

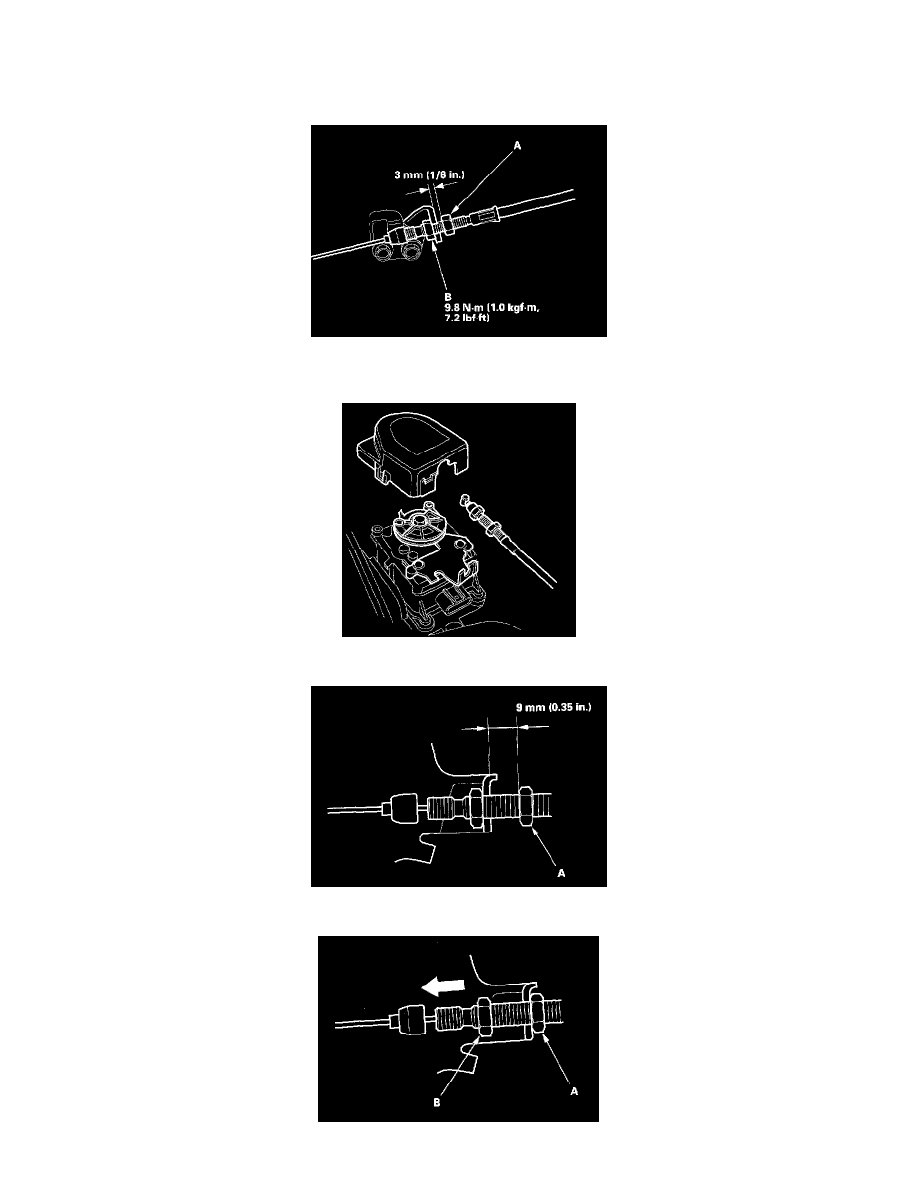

Cruise Control Actuator Cable Adjustment
1. Hold the cable sheath, removing all slack from the throttle cable.
2. Turn the adjusting nut (A) until it is 3 mm (1/8 in.) away from the throttle cable bracket.
3. Tighten the locknut (B). The throttle cable deflection should now be 4-6 mm (0.16 - 0.24 in.).
4. Remove the actuator cover, then disconnect the actuator cable end from the cruise control actuator.
5. Turn the adjusting nut (A) until it is 9 mm (0.35 in.) away from the actuator cable bracket when the throttle linkage starts open.
