Santa Fe L4-2.4L (2001)

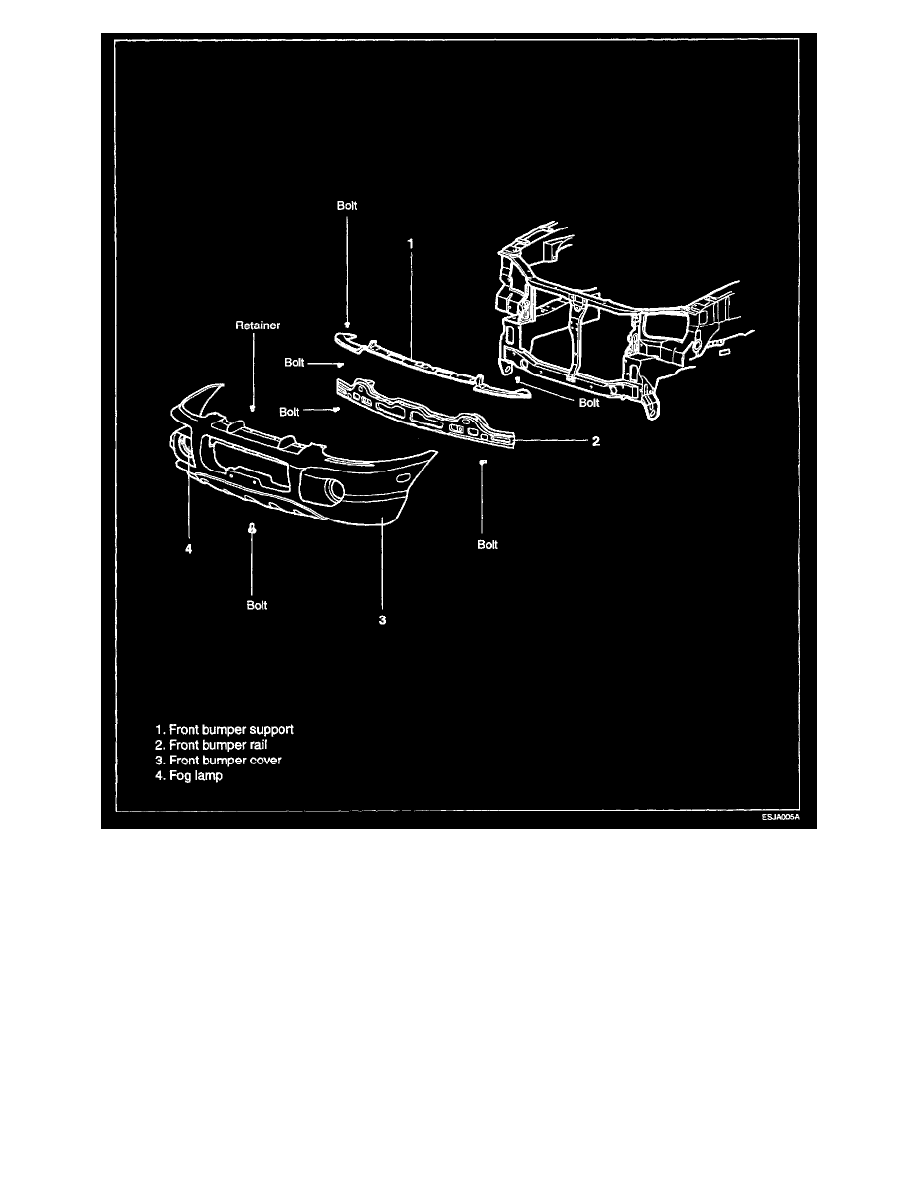

2. Remove the turn signal lamps and head lamps.
3. Remove the screws holding the front bumper cover.
4. Raising the vehicle, remove the bolts holding the front bumper cover and the front wheel guard.
5. Remove the front bumper cover and the bumper energy absorber.
