Santa Fe L4-2.4L (2001)
Fuse: Technical Service Bulletins
A/T - MIL ON/Failsafe Mode/DTC P0885 or P1723 Set
Group:
TRANSAXLE
Number:
04-40-015
Date:
SEPTEMBER, 2004
Model
1999 SONATA, 2001 ELANTRA, 2001 SANTA FE, 2001 XG300/350, 2003 TIBURON
Subject:
AUTOMATIC TRANSAXLE DIAGNOSTIC TROUBLE CODE P0885 & P1723
This bulletin supersedes TSB 03-40-014 to add DTC P0885 in formation.
DESCRIPTION:
DTC P0885 or P1723 (A/T control relay open/short) is set if the output voltage to the solenoids is less than 7 volts. P0885 or P1723 may be
accompanied by the following symptoms:
^
MIL illuminated
^
Transaxle held in 3rd gear fail-safe
^
Harsh shift into Reverse or Drive
If you are servicing a vehicle with these symptoms, follow the repair procedure.
REPAIR PROCEDURE:
1.

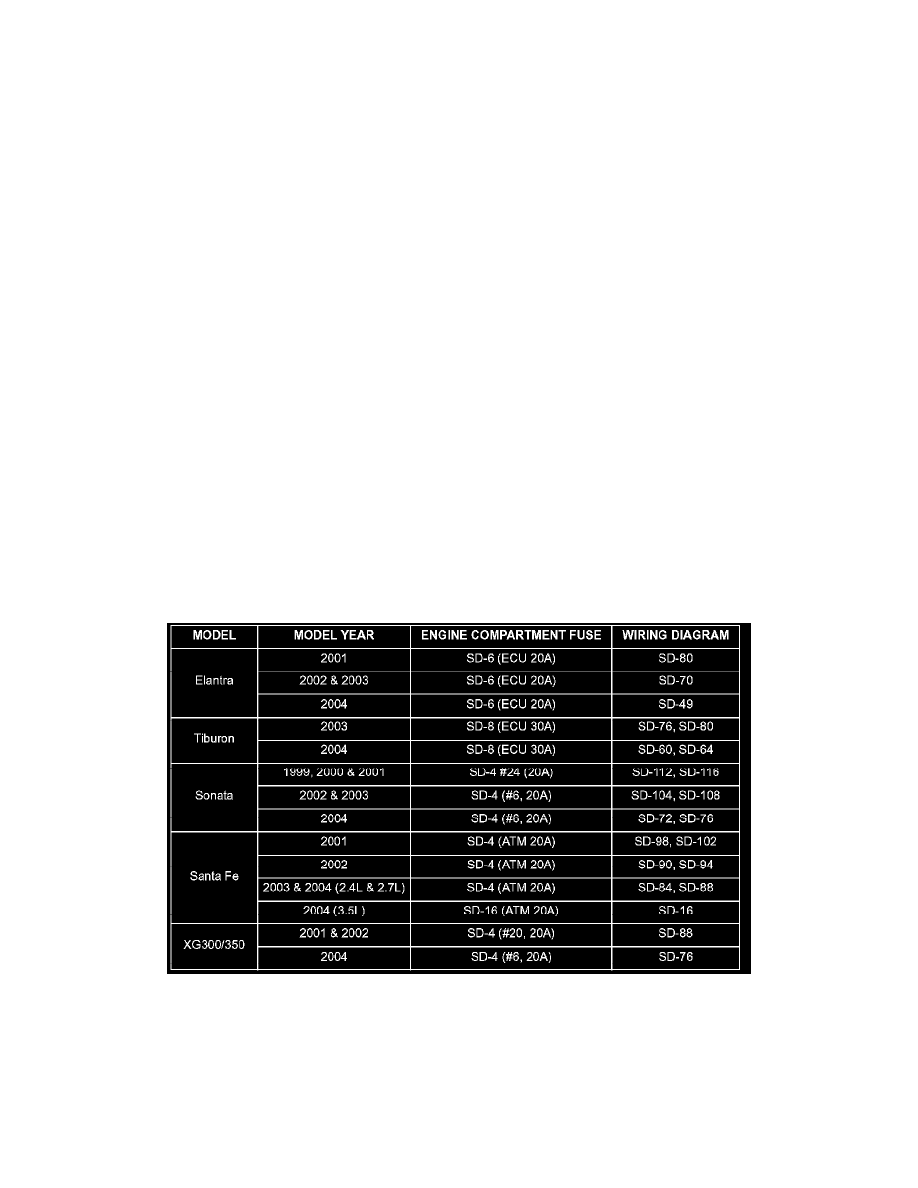

Refer to the applicable ETM and check the A/T control relay fuse in the engine compartment (for other model years, refer to the applicable ETM)
shown.
