Santa Fe FWD L4-2.4L (2010)
Sunroof / Moonroof Motor: Testing and Inspection
How to Initialize
How To Initialize Motor
1. Check that the glass has been installed.
A. Finished height adjustment.
2. Push the up switch. (Keep on pushing the switch)

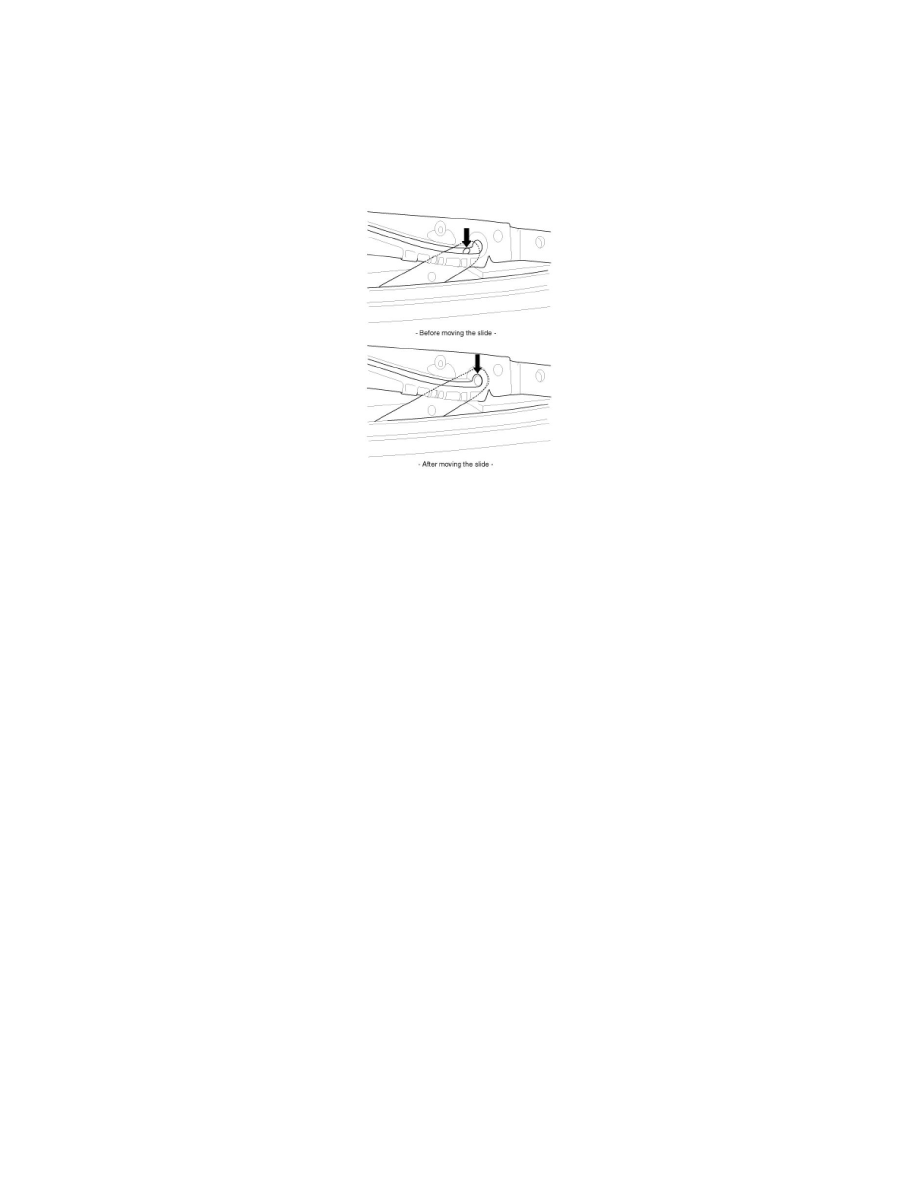

A. the slide moved 5mm forward after 15 seconds.
3. After moving the slide 5mm forward, turn OFF the switch and push the UP switch (Keeping on pushing the switch with continuous operation)
A. If the operation above is normal condition, the sunroof once and closes.
4. When the sunroof is closed completely, turn OFF the UP switch initialize the motor completely.
