Santa Fe FWD V6-2.7L (2007)

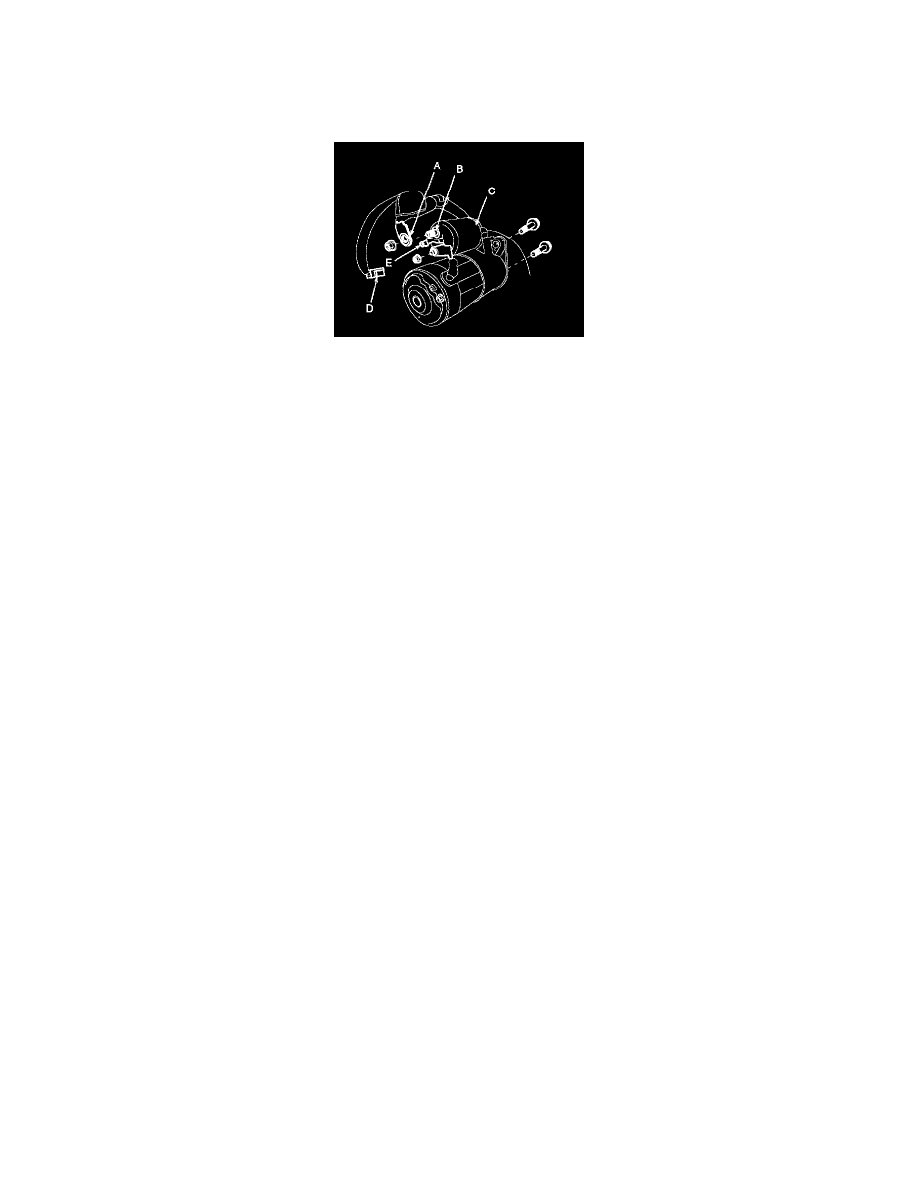

8. Check with an ohmmeter that no continuity exists between the commutator (A) and armature coil core (B), and between the commutator and
armature shaft (C). If continuity exists, replace the armature.
INSPECT STARTER BRUSH
Brushes that are worm out, or oil-soaked, should be replaced.
STARTER BRUSH HOLDER TEST
1. Check that there is no continuity between the (+) brush holder (A) and (-) brush holder (B). If there is no continuity, replace the brush holder
assembly.
2. Pry back each brush spring (A) with a screwdriver, then position the brush (B) about halfway out of its holder, and release the spring to hold it
there.
3. Install the armature in the housing, and install the brush holder. Next, pry back each brush spring again, and push the brush down until it seats
against the commutator, then release the spring against the end of the brush.
