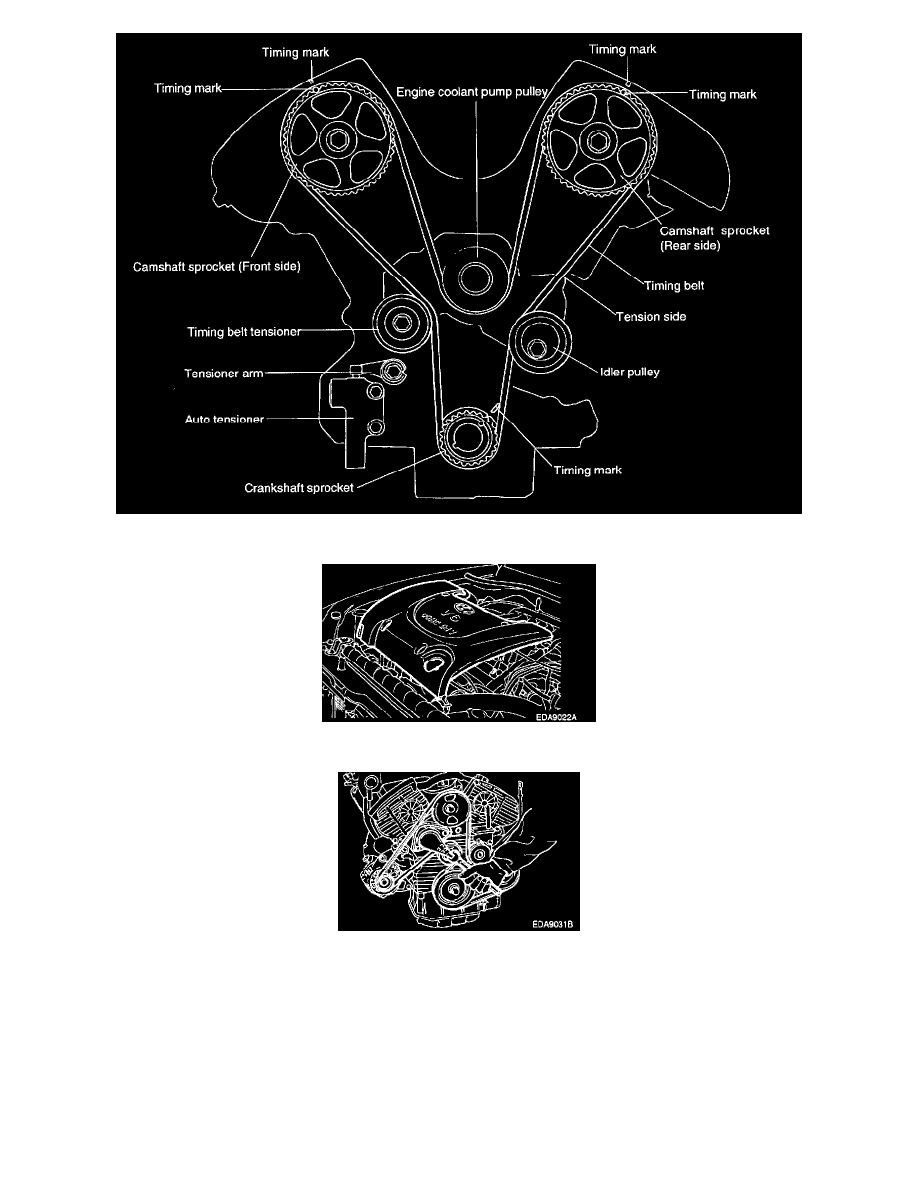

REMOVAL

1. Remove the engine cover.

2. Using the spanner [16mm], rotate the tensioner arm clockwise. (about 14°) and remove the belt from pulley.
3. Remove the following pulleys, power steering pump, idler, tensioner and crankshaft.
