Fog/Driving Lamp Relay: Locations

Located in the Engine Compartment Fuse/Relay Box

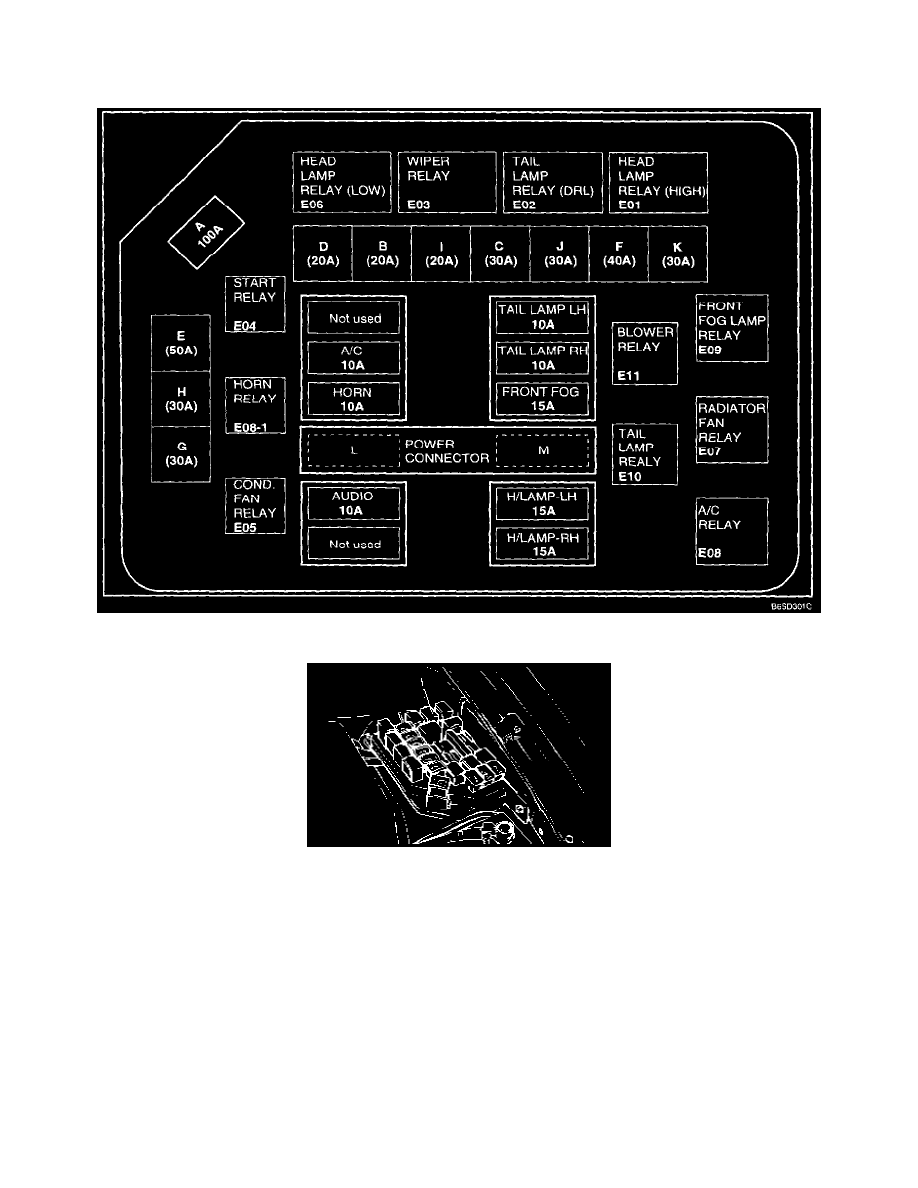

Engine Compartment Relay And Fuse Box Layout
