M45 V8-4.5L (VK45DE) (2006)
Refrigerant Pressure Sensor / Switch: Service and Repair
Removal and Installation of Refrigerant Pressure Sensor
REMOVAL
1. Remove liquid tank. Refer to "Removal and Installation of Condenser".

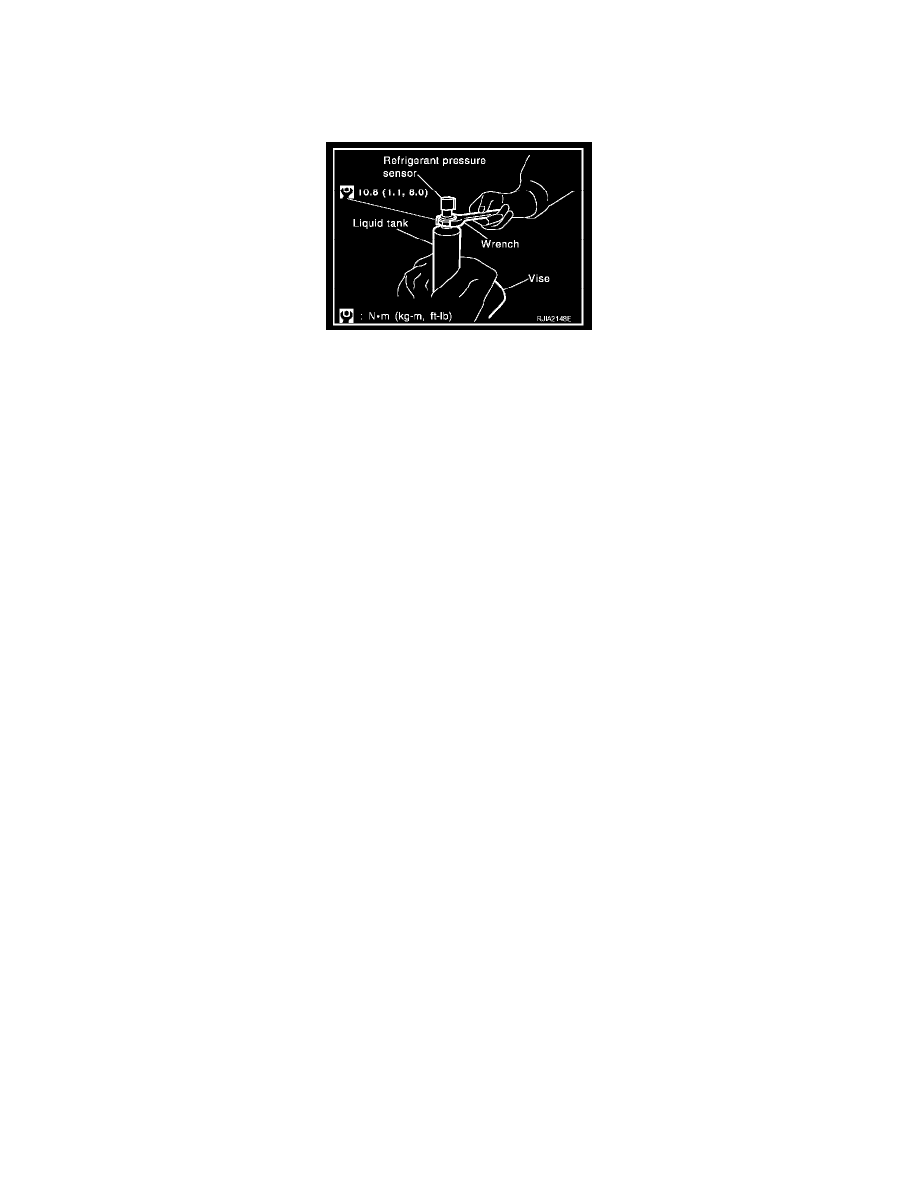

2. Using a vice, secure liquid tank, and remove refrigerant pressure sensor.
INSTALLATION
Installation is basically the reverse order of removal.
CAUTION: Apply compressor oil to O-ring of refrigerant pressure sensor when installing it.
