Information Bus|Flow of Diagnosis|Page 4231 > < Information Bus|Flow of Diagnosis|Page 4229

M45 V8-4.5L (VK45DE) (2006)

Page 25
background image

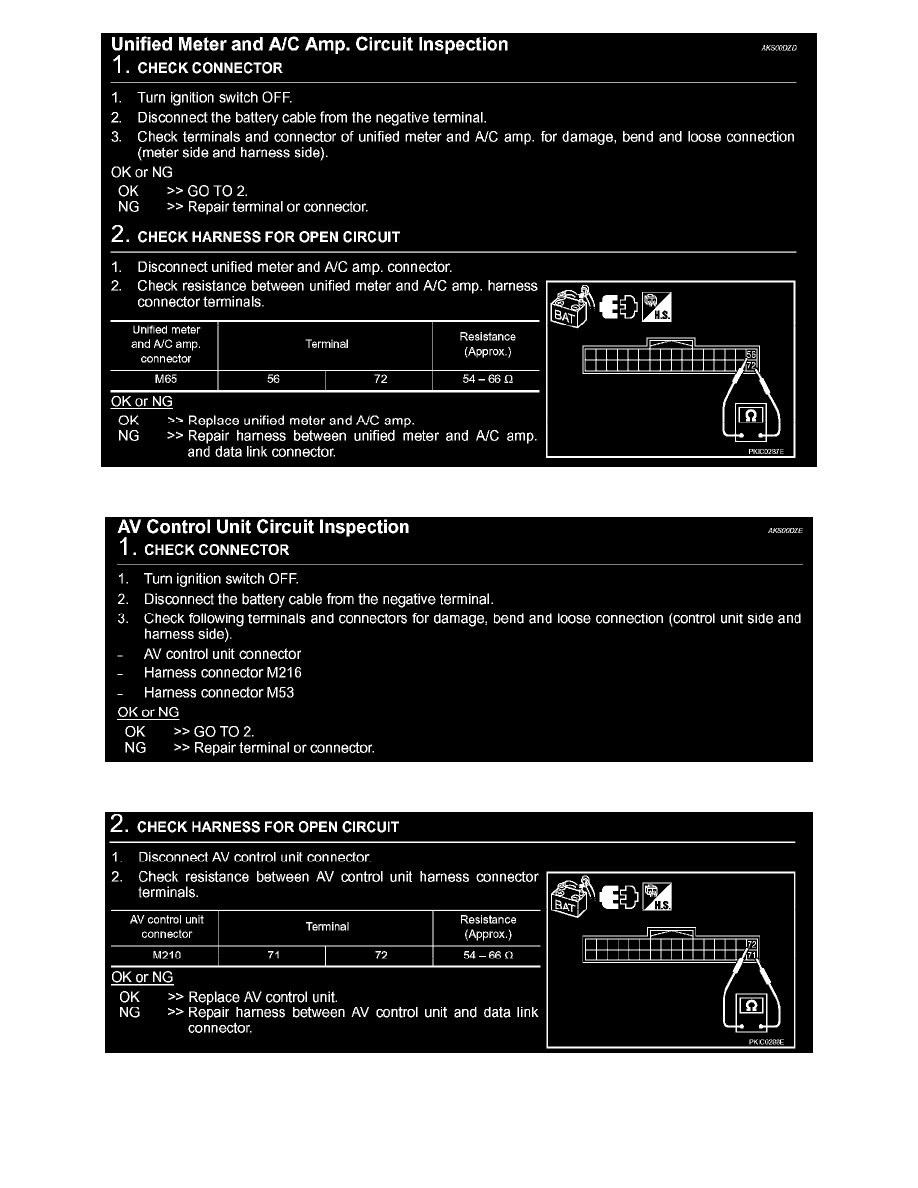

Unified Meter And A/C Amp. Circuit Inspection

AV Control Unit Circuit Inspection (Step 1)

AV Control Unit Circuit Inspection (Step 2)

Information Bus|Flow of Diagnosis|Page 4231 > < Information Bus|Flow of Diagnosis|Page 4229
