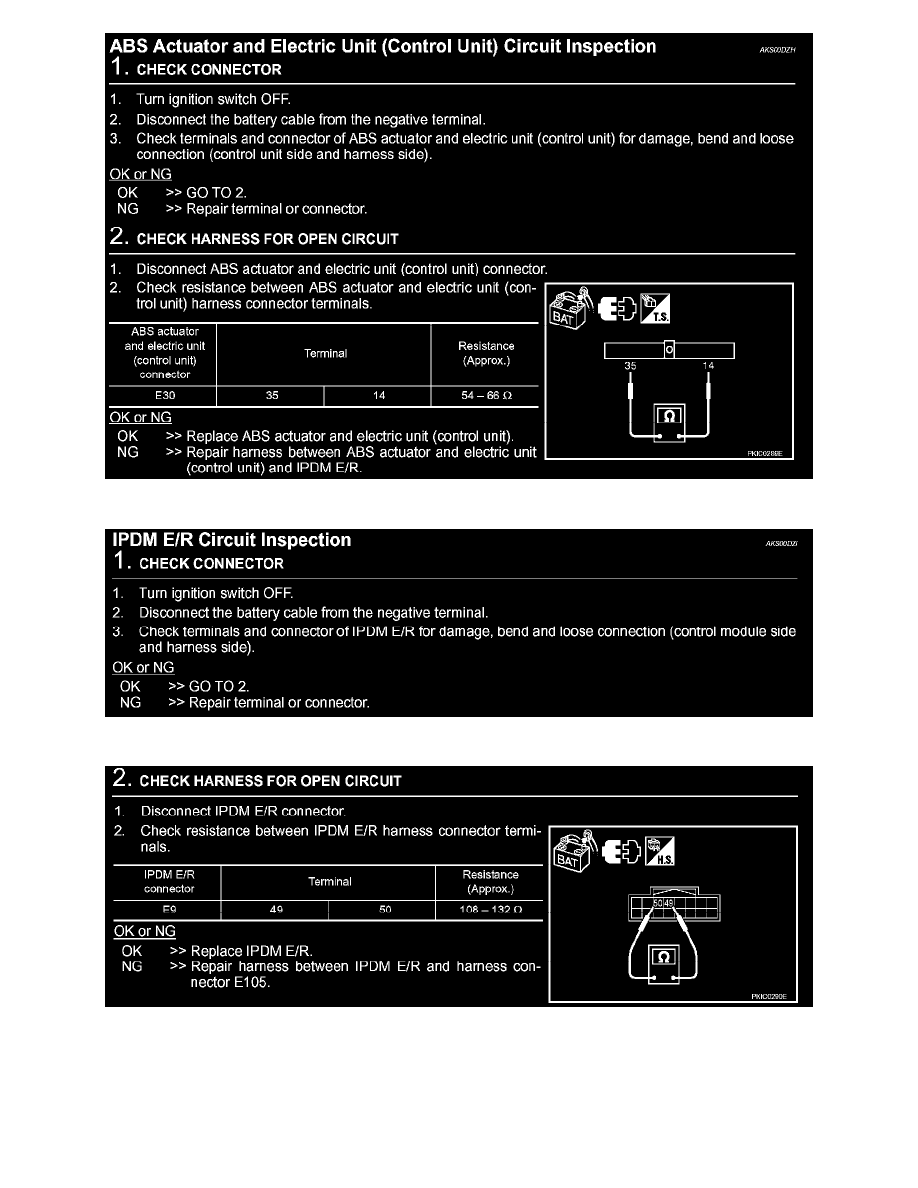

ABS Actuator And Electric Unit (Control Unit) Circuit Inspection

IPDM E/R Circuit Inspection (Step 1)

IPDM E/R Circuit Inspection (Step 2)
