Information Bus|Flow of Diagnosis|Page 4348 > < Information Bus|Flow of Diagnosis|Page 4346

M45 V8-4.5L (VK45DE) (2006)

Page 142
background image

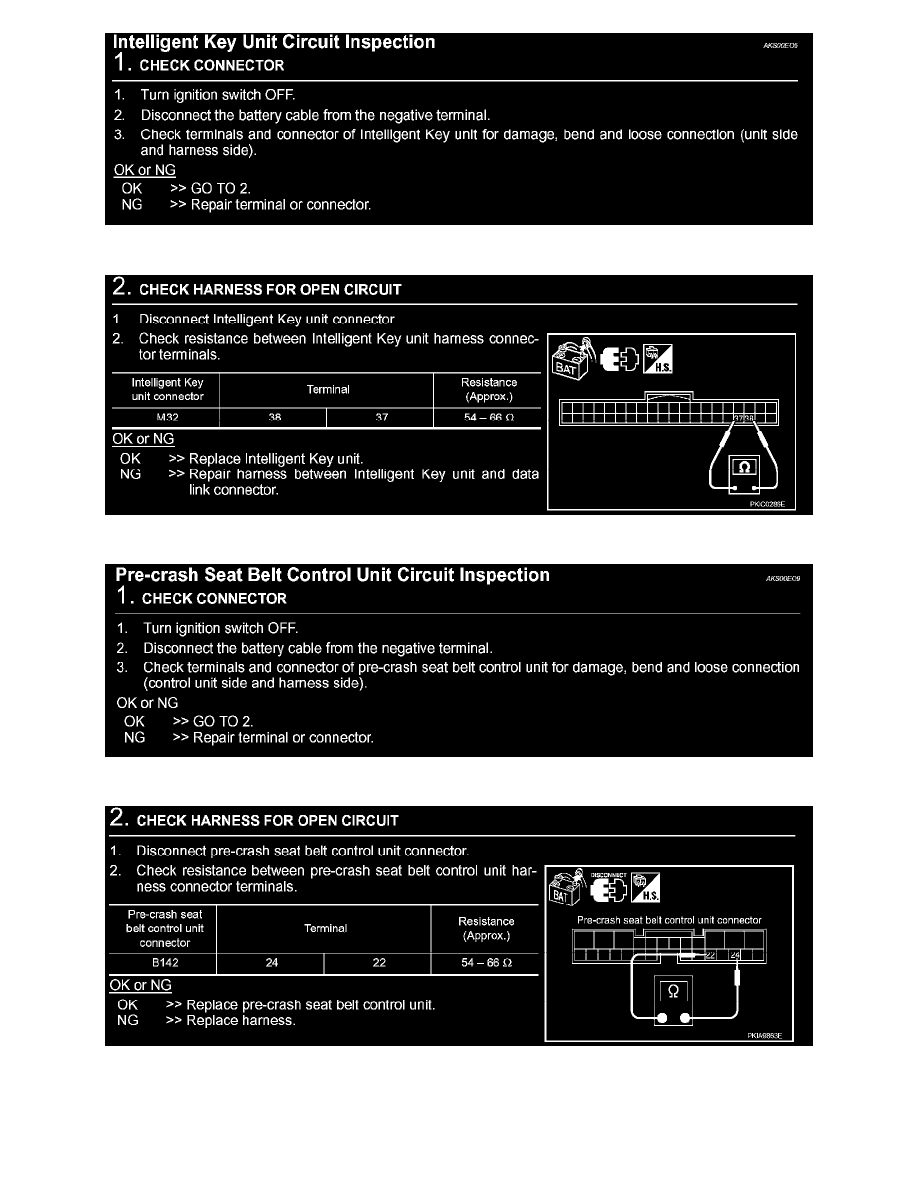

Intelligent Key Unit Circuit Inspection (Step 1)

Intelligent Key Unit Circuit Inspection (Step 2)

Pre-crash Seat Belt Control Unit Circuit Inspection (Step 1)

Pre-crash Seat Belt Control Unit Circuit Inspection (Step 2)

Information Bus|Flow of Diagnosis|Page 4348 > < Information Bus|Flow of Diagnosis|Page 4346
