M45 V8-4.5L (VK45DE) (2006)

Page 227
background image

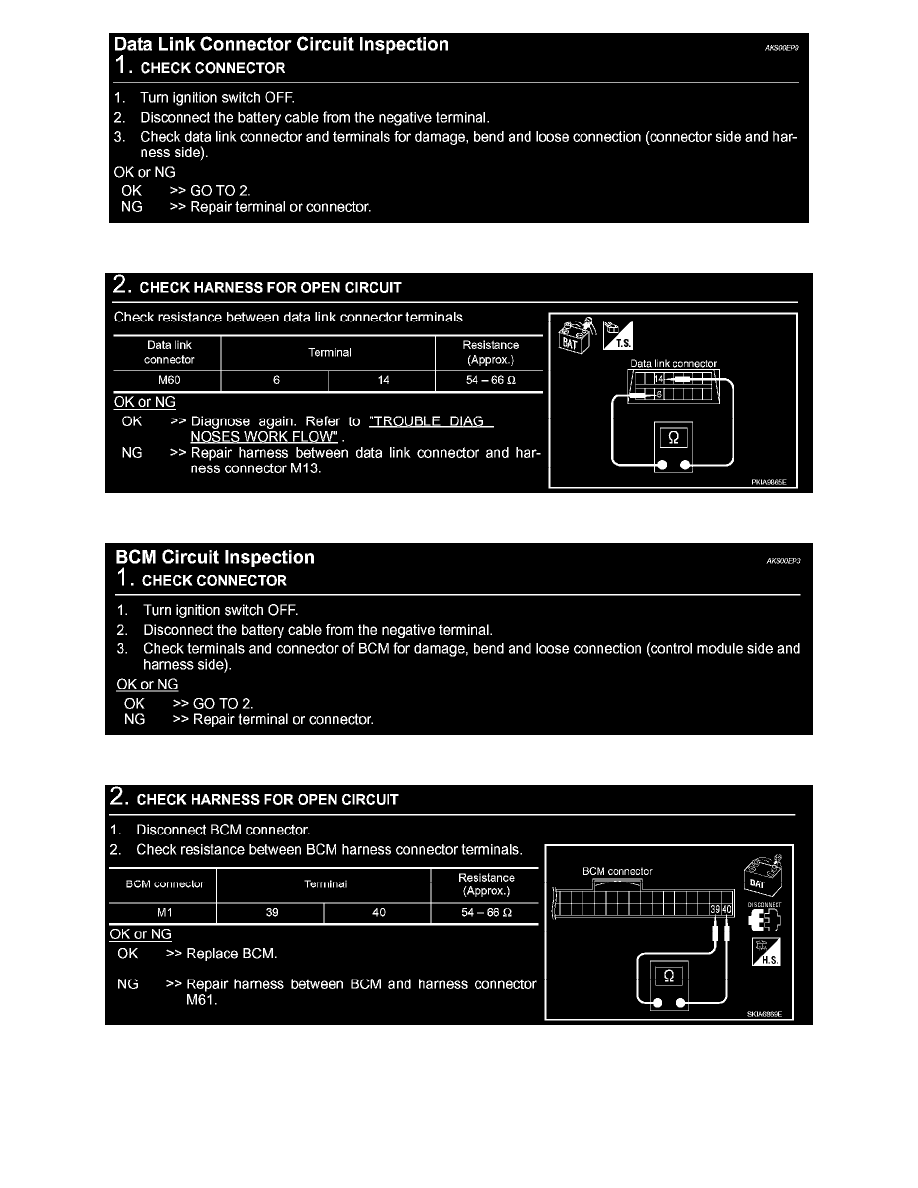

Data Link Connector Circuit Inspection (Step 1)

Data Link Connector Circuit Inspection (Step 2)

BCM Circuit Inspection (Step 1)

BCM Circuit Inspection (Step 2)
