Axiom 2WD V6-3.5L (2002)

Page 1
background image

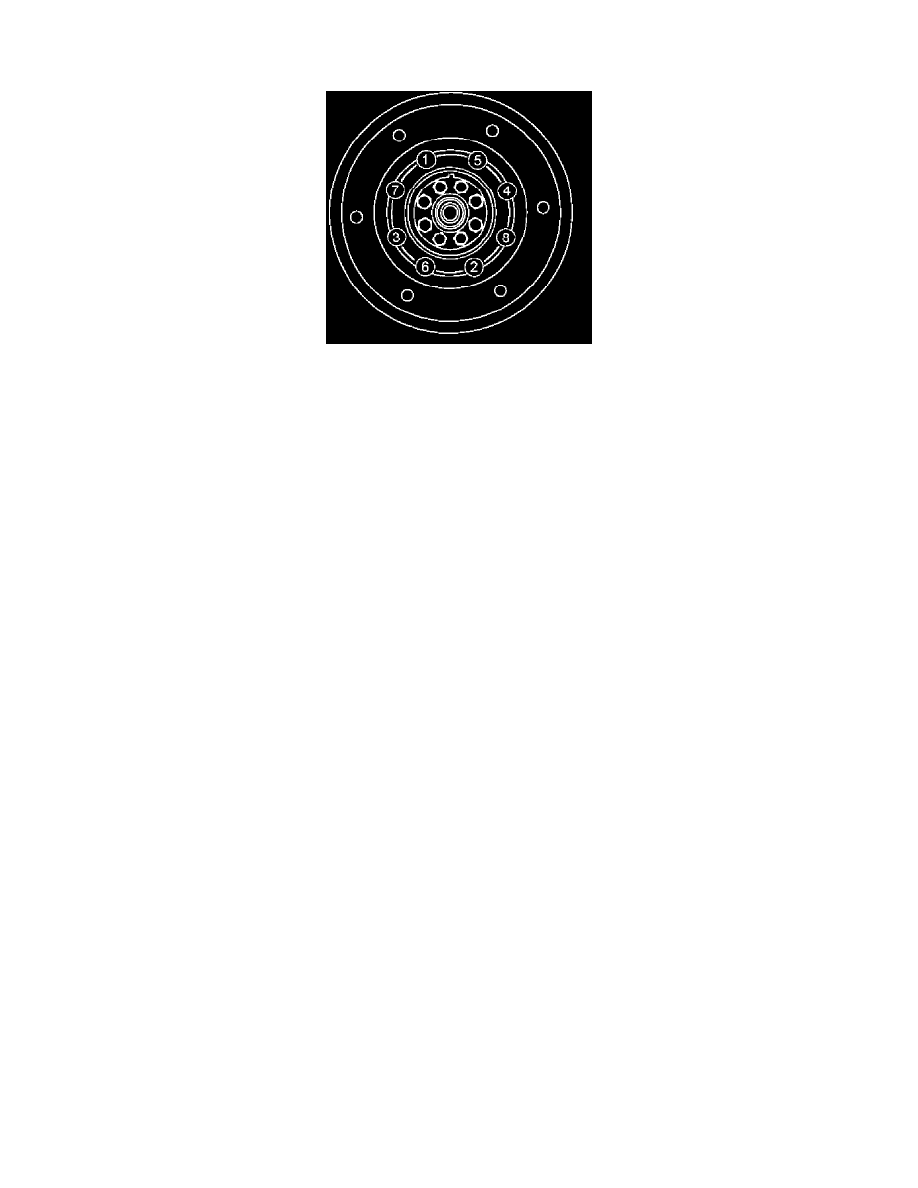

Flex Plate: Specifications

Flywheel Bolt

Tighten fixing bolts to the specified torque.
Torque ..................................................................................................................................................................................................  54 Nm (40 ft. lbs.)
