i-350 L5-3.5L (2006)
Front Bumper Cover / Fascia: Service and Repair
Insert Replacement - Front Bumper Fascia (XTREME)
Insert Replacement - Front Bumper Fascia (XTREME)
Removal Procedure
Important: Do NOT remove the fog lamp assembly to replace the grille.

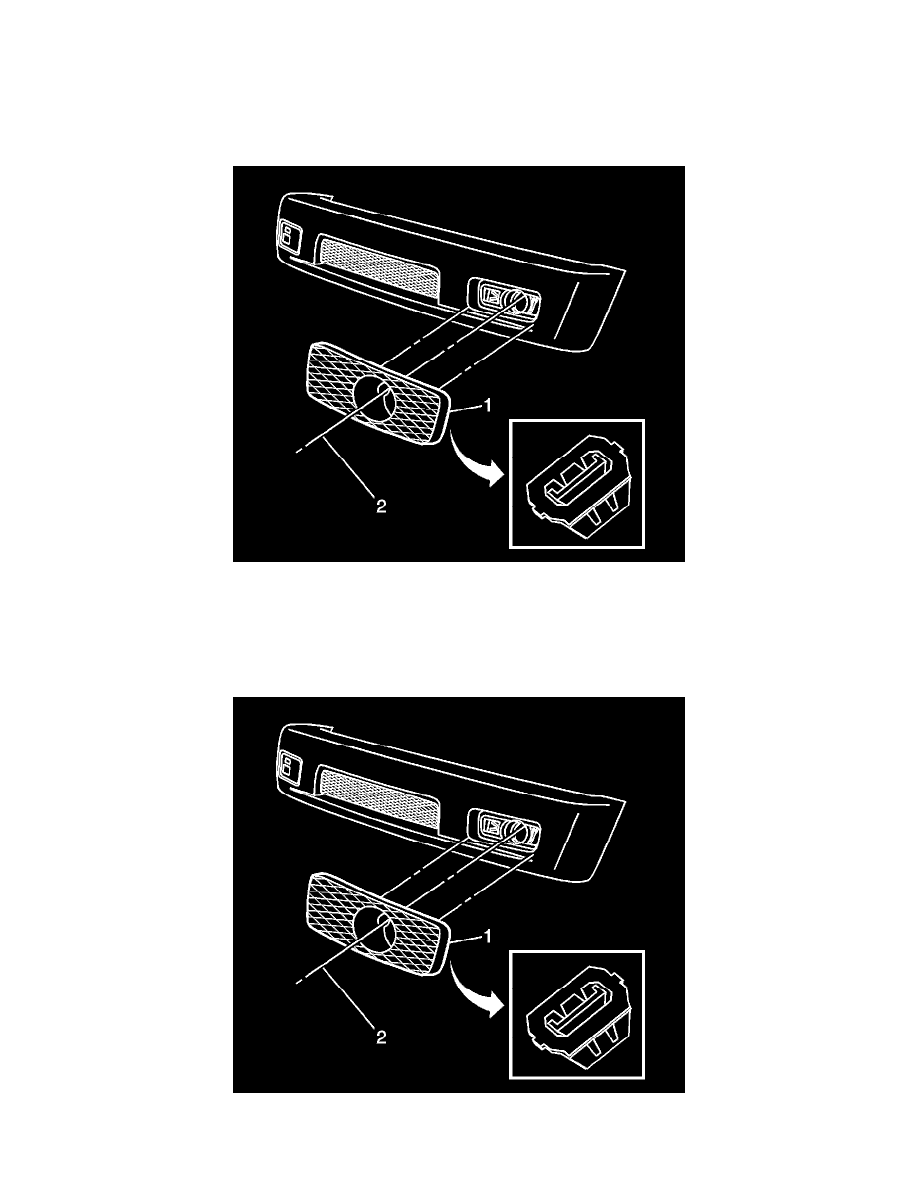

1. Use the fog lamp adjustment hole to hook a suitable tool into and pull forward to release the grille from the fascia.
2. Remove the grille (1) and clips from the vehicle.
Installation Procedure
1. Install the clips to the fog lamp grille (1).
2. Install the grille to fascia.
