NPR L4-5.2L DSL Turbo (2005)
16. Install the gasket to the cylinder head cover.

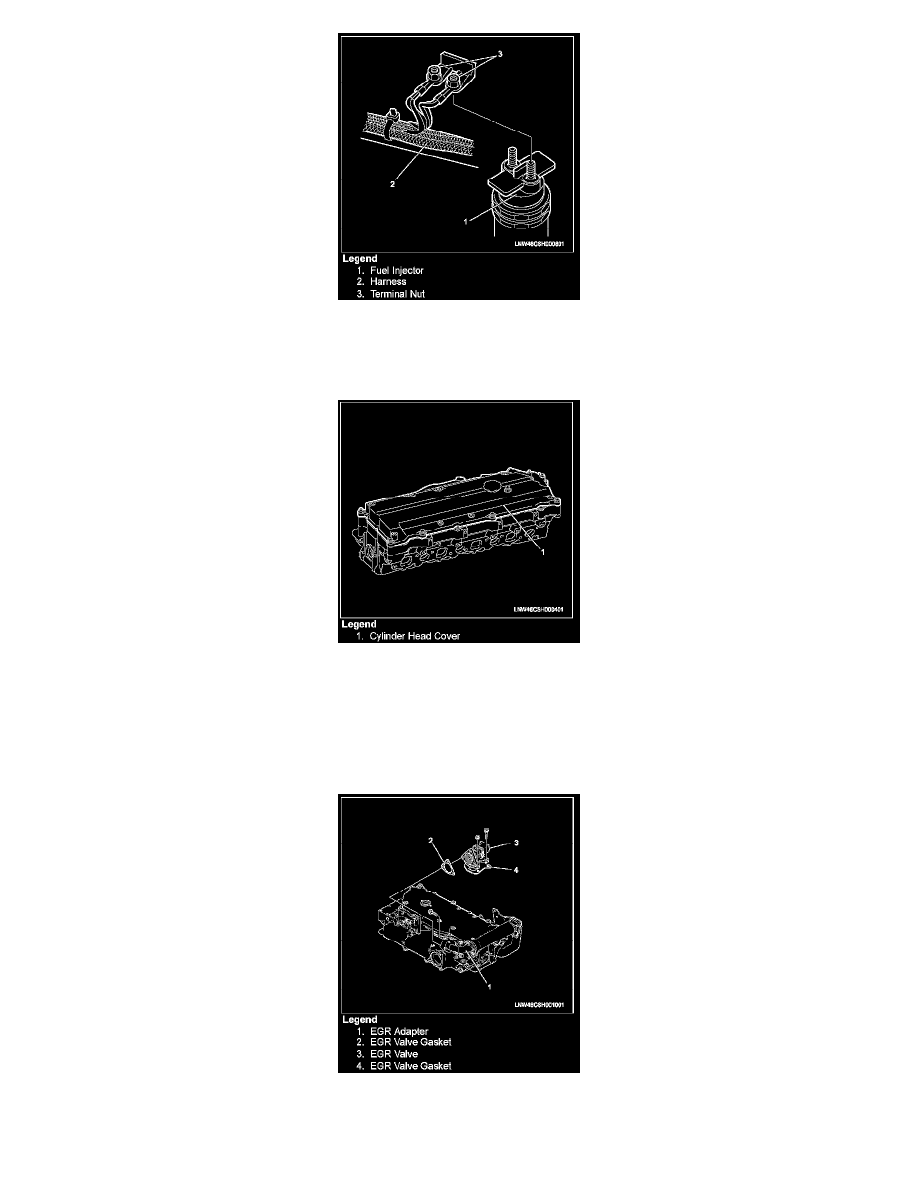

17. Install the cylinder head cover and tighten the bolts to the specified torque.
Tightening torque: 18 N.m (13 lb ft)
18. Install the gasket to the EGR valve and tighten the bolts to the specified torque.
Tightening torque: 24 N.m (17 lb ft)
19. Install the gasket to the EGR adapter and tighten the bolts to the specified torque.
Tightening torque: 24 N.m (17 lb ft)
20. Attach the engine harness connectors. Each composite connector should make a loud click when it is securely attached.
Before Programming The Fuel Injector Flow Rate
