Rodeo 2WD V6-3.2L (2003)
Front Bumper Bracket: Service and Repair
Front Bumper Slider Bracket
Removal
1. Disconnect the battery ground cable.
2. Remove the front bumper.

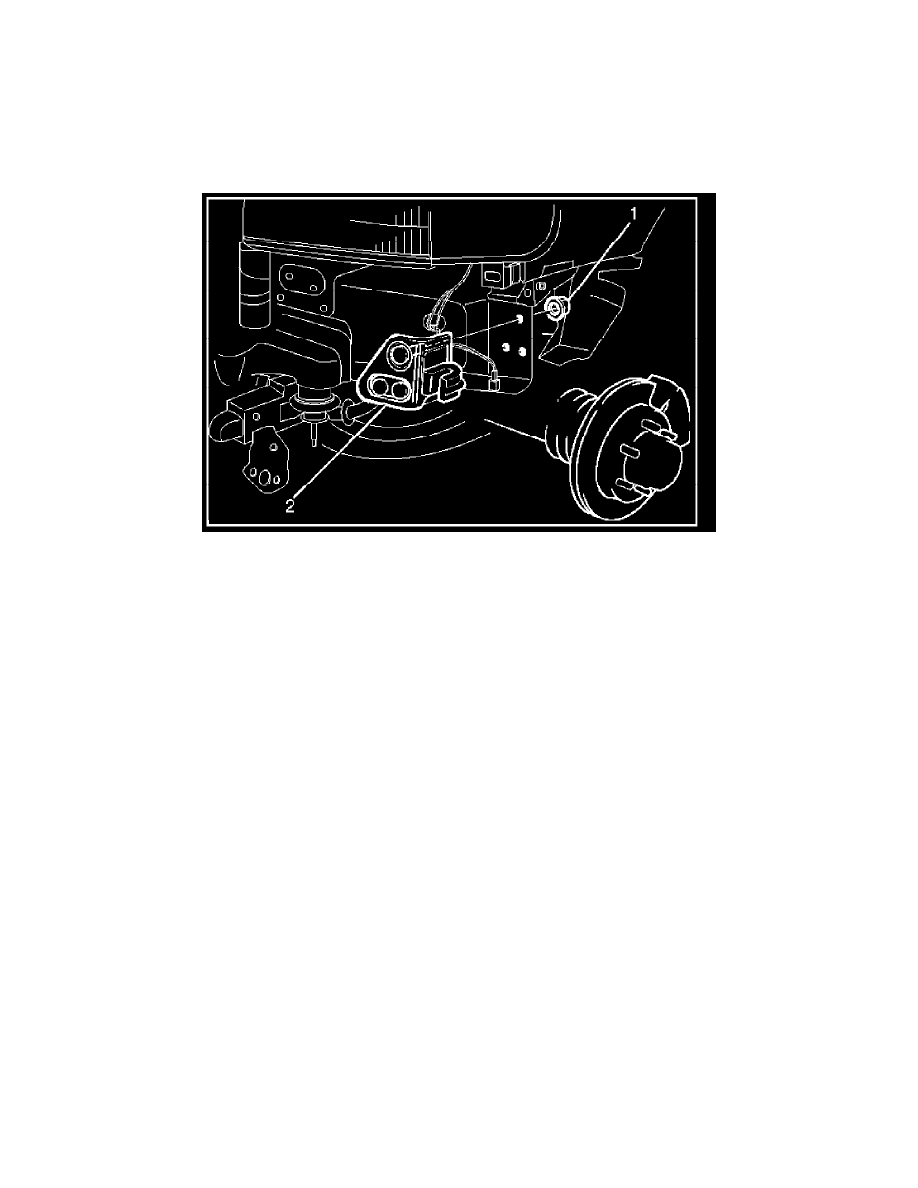

3. Remove the three nuts (1) and draw out the slider bracket (2).
Installation
To install, follow the removal steps in reverse order.
