Trooper LTD V6-3165cc 3.2L SOHC MFI (6VD1) (1997)
the circuit diagram, irrespective of the above rule.
2. The connectors used for relays have their own terminal number assignment, irrespective of the above rule.

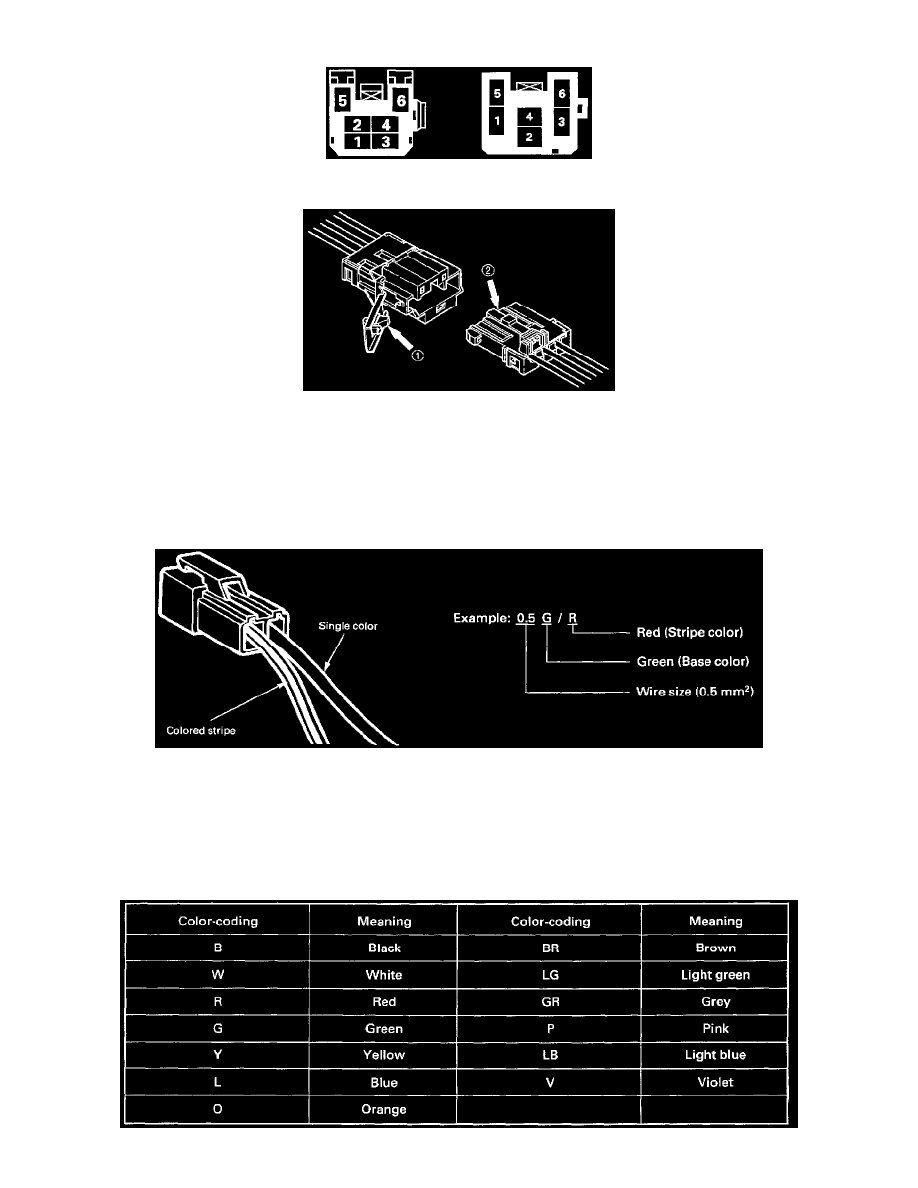

DOUBLE LOCK TYPE CONNECTOR
Double-lock type yellow color connectors are used for supplemental restraint system-air bag circuit. When removing the cable harness, disconnect the
connector by unlocking at two places, outside (1) and inside (2). In such a case, do not pull the cables. Otherwise, cable disconnection may occur.
When connecting the connector, insert the connector completely and lock at outside. Imperfect locking may cause malfunction of SRS system circuit.
Parts For Electrical Circuit Wiring
Wire Color
All wires have color-coded insulation.
Wires belonging to a system's main harness will have a single color. Wires belonging to a system's sub- circuits will have a colored stripe. Striped
wires use the following code to show wire size and colors.
Abbreviations are used to indicate wire color within a circuit diagram.
Refer to the following table.
