X-Type (X400) V6-3.0L (2002)

Page 1
background image

Parking Assist Distance Sensor: Service and Repair

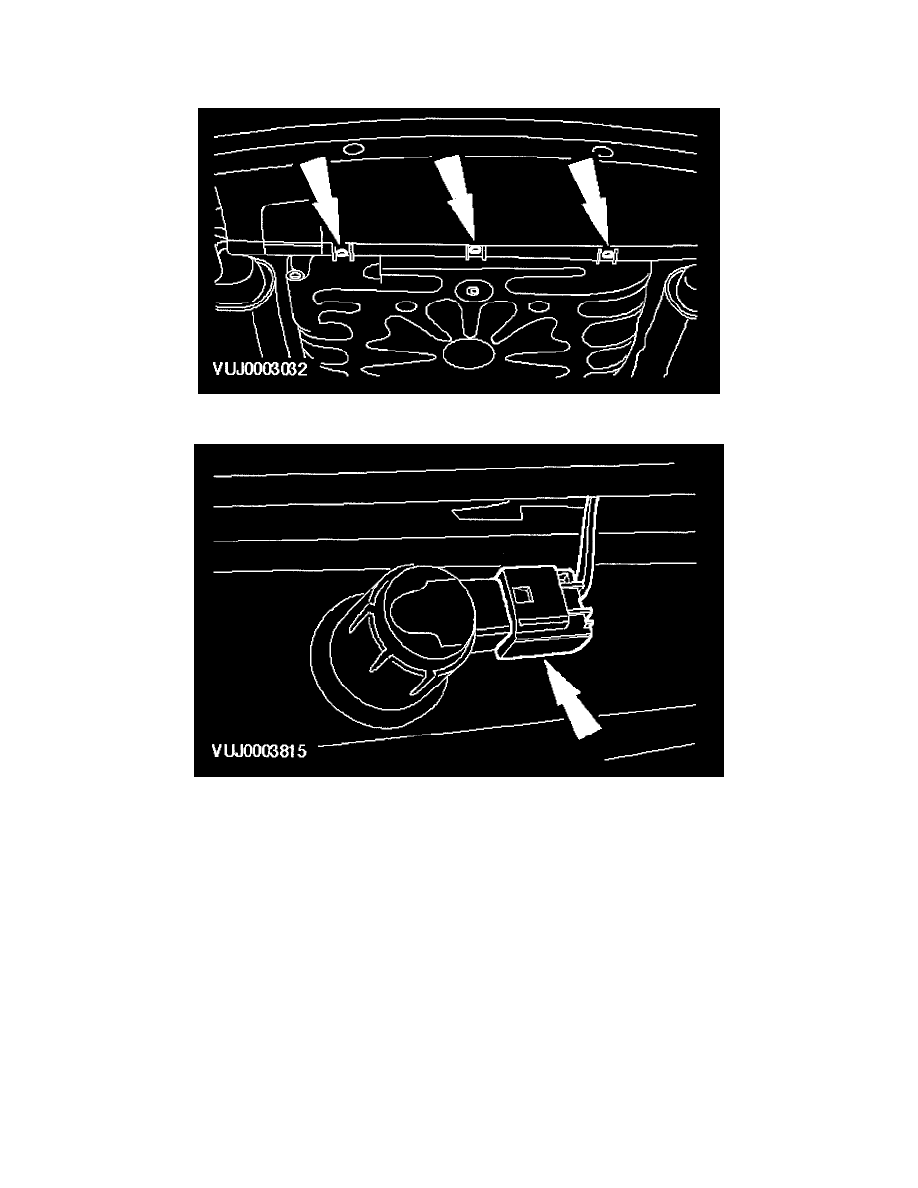

Removal

1. Detach the bumper lower black out panel.

2. Disconnect the electrical connector.
