X-Type (X400) V6-3.0L (2002)
Front Door Window Glass: Removal and Replacement
Front Door Window Glass (76.31.01)

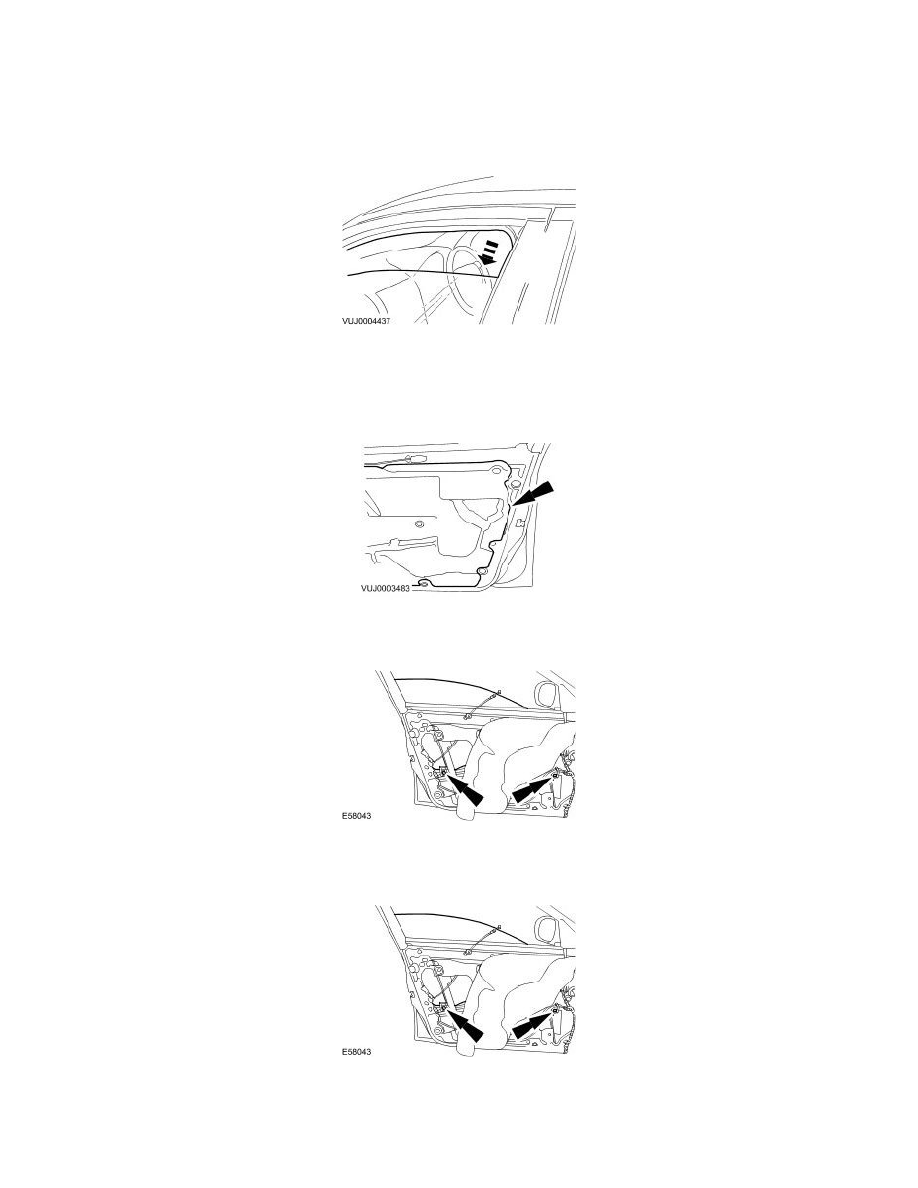

Removal
1. Lower the front door window glass approximately 290 mm (11.41 in).
2. Remove the front door trim panel.
3. CAUTION: Do not touch the adhesive surface as rebonding will be impaired.
Detach the front door weathershield.
4. Remove the front door window glass.
-
Loosen the retaining bolts.
Installation
1. Install the front door window glass, but do not tighten the retaining bolts.
2. Connect the window control switch electrical connector.
3. Power the front door window glass to the fully closed position.
4. Tighten to 8 Nm.
