X-Type (X400) V6-3.0L (2002)

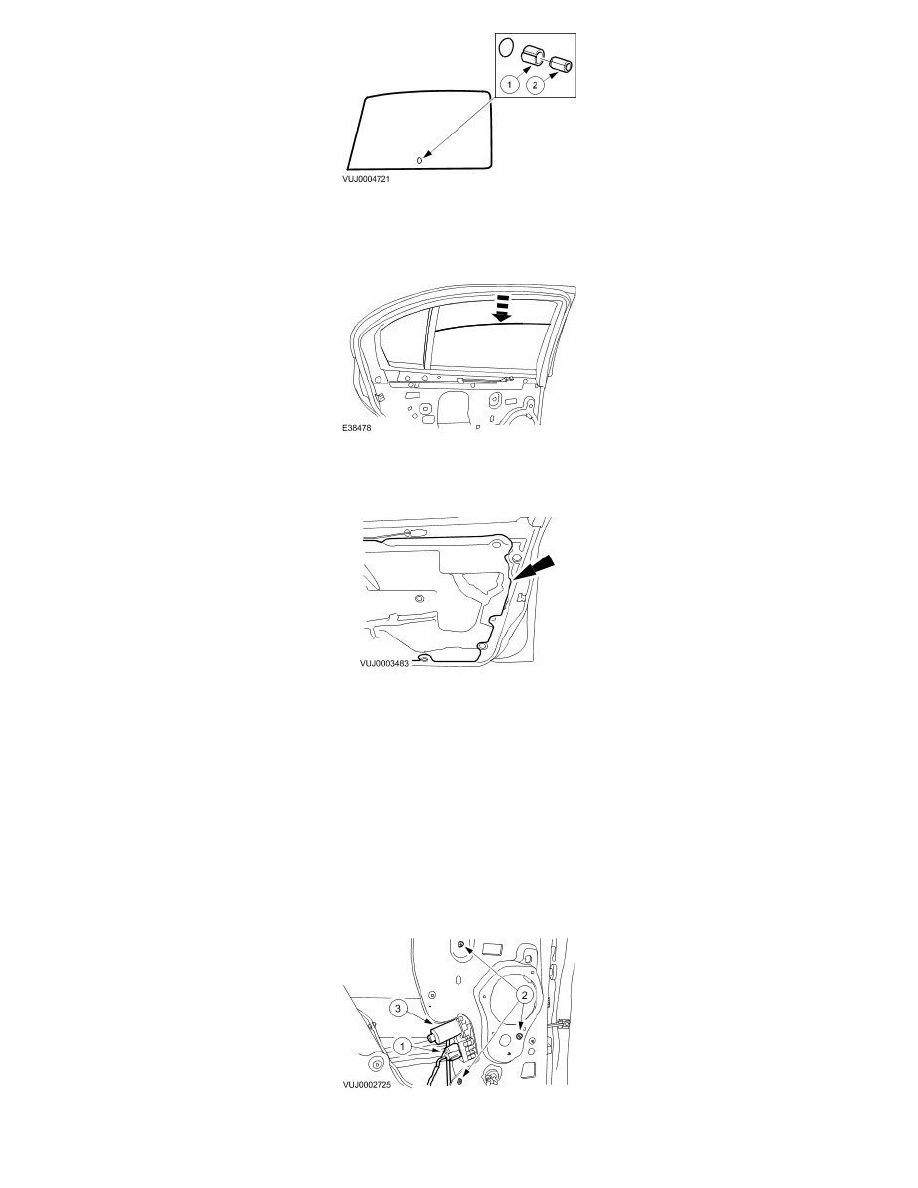

4. NOTE: Insert the glass into the regulator glass clamp and firmly pushed down. Check both sides of the clamp have snapped over the spacer
bracket pin.
Attach the window glass into the regulator clamp.
5. CAUTION: Do not touch the adhesive surface as rebonding will be impaired
Install the weathershield.
6. Install the rear door speaker.
7. Install the door trim panel.
Rear Door Window Regulator and Motor
Rear Door Window Regulator and Motor (86.25.09)
Removal
1. Remove the rear door window glass.
2. Remove the rear motor and window regulator.
1. Disconnect the electrical connector.
2. Remove the retaining screws.
3. Remove the rear motor and window regulator.
Installation
