X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1576001.png)
Front Fender Liner: Service and Repair
Fender Splash Shield
Fender Splash Shield (76.10.90)

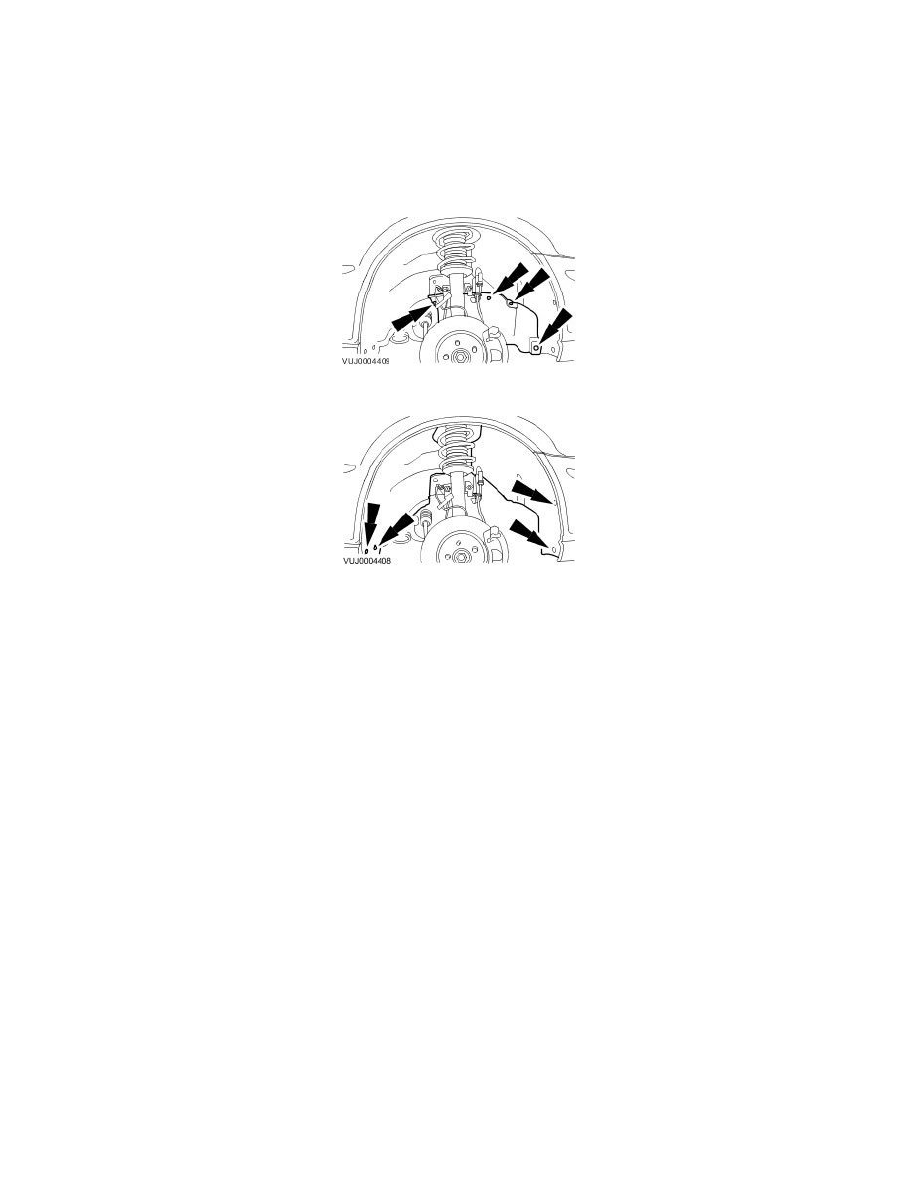

Removal
1. Remove the wheel and tire assembly.
2. Remove the wheel arch liner access cover.
3. Remove wheel arch liner.
Installation
1. To install, reverse the removal procedure.
