X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1650001.png)
Sunroof / Moonroof Drain: Service and Repair
Roof Opening Panel Drain Hose (76.82.26)

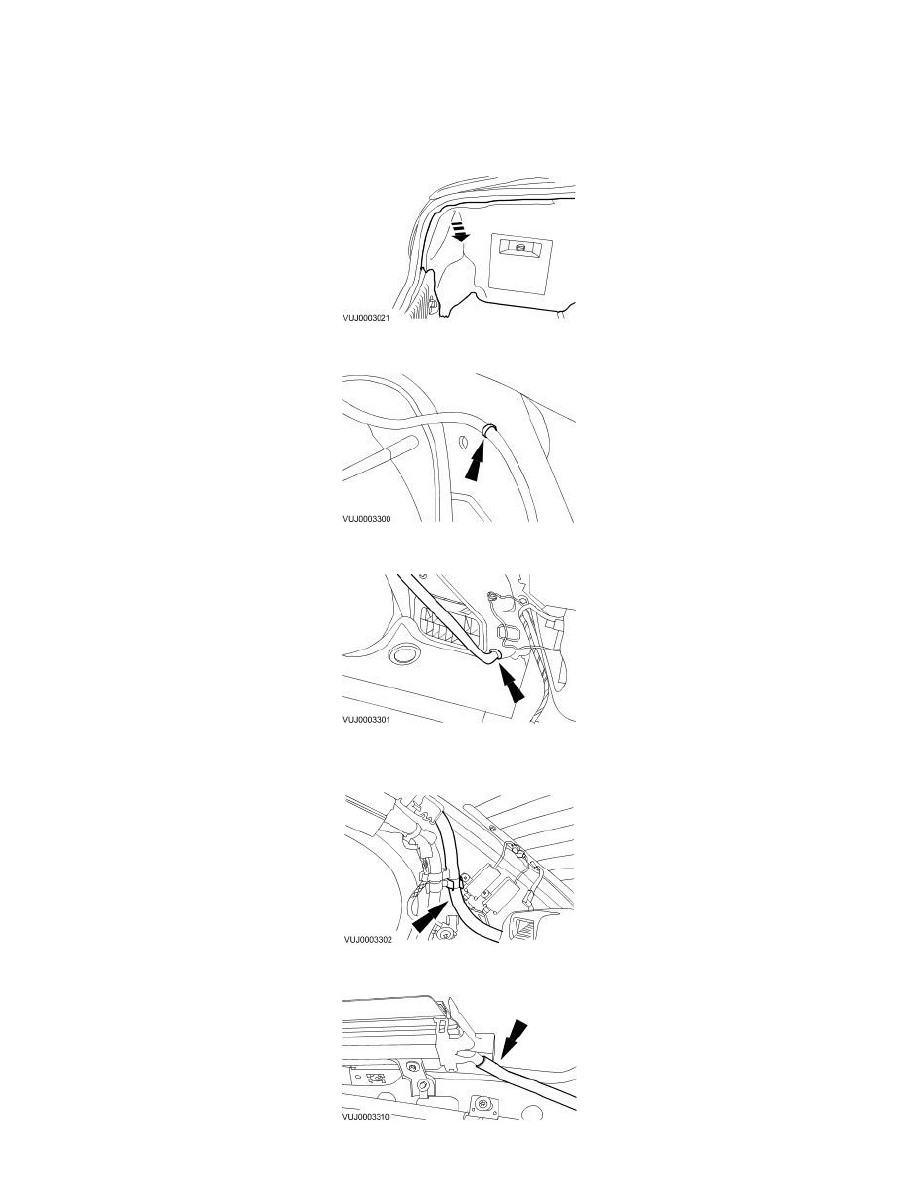

Removal
1. Detach the rear quarter trim panel.
2. Detach the drain hose from the retaining clip.
3. Detach the drain hose from the grommet.
4. Remove the headliner.
5. Detach the drain hose from the retaining clip.
6. Remove the drain hose.
