X-Type (X400) V6-3.0L (2002)
Action

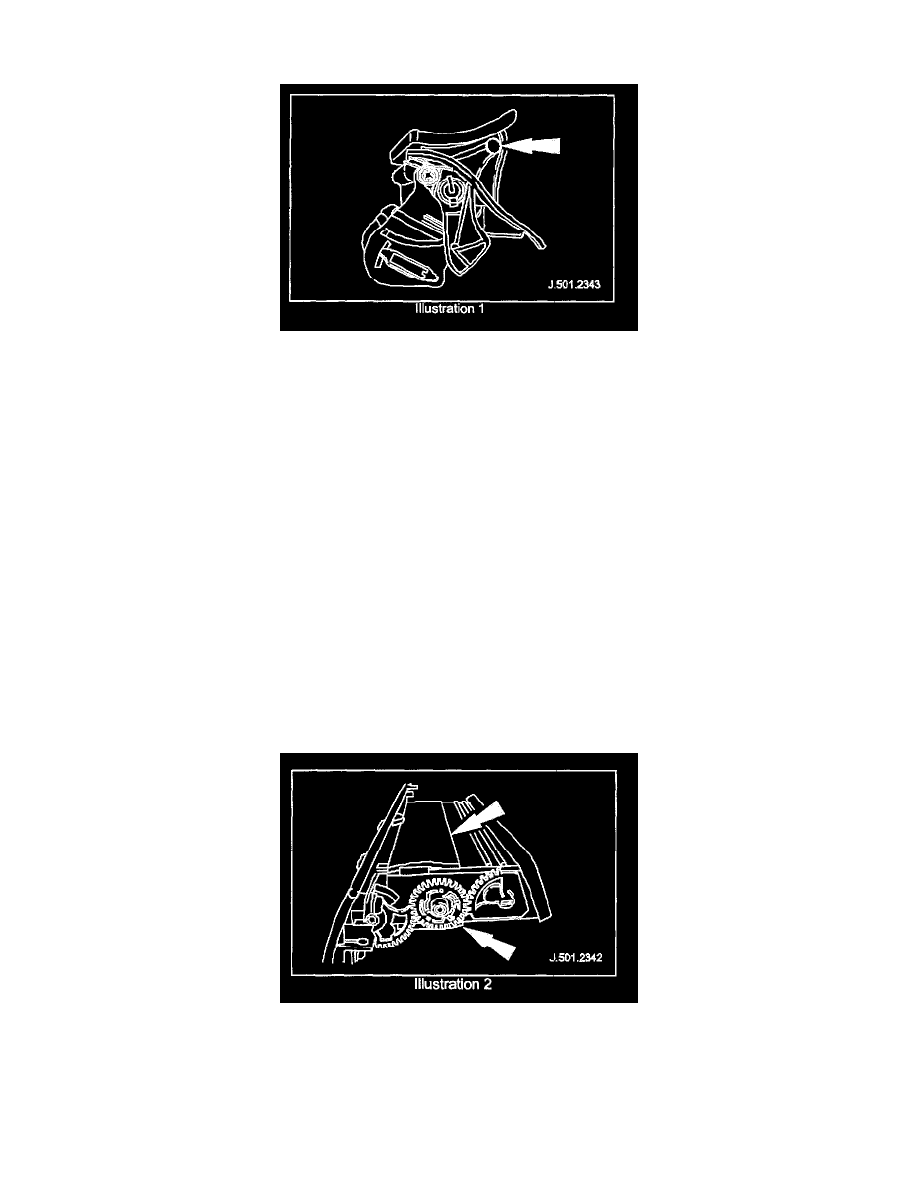

Application of felt washer (trim to suit) underneath the check arm in the highlighted area will eliminate the noise. Lift check arm from lid pivot and apply
washer over pivot. Replace check arm to lid pivot. (Illustration 1)
Affected VIN Range
C00689 to C19875
Center registers
Description
Center register buzz/rattle.
Root Cause
Two causes are possible:
1.
Clipping between the top of the center housing and the veneer is not fully home.
2.
Vertical vane free-play.
Action
1.
Check the position of the center clip to engage fully into the housing.
2.
Apply the foam pads to the top and bottom of the housing. (Illustration 2)
Affected VIN Range
C00689 to C19567
High Intensity Discharge (HID) Harness Rattle
